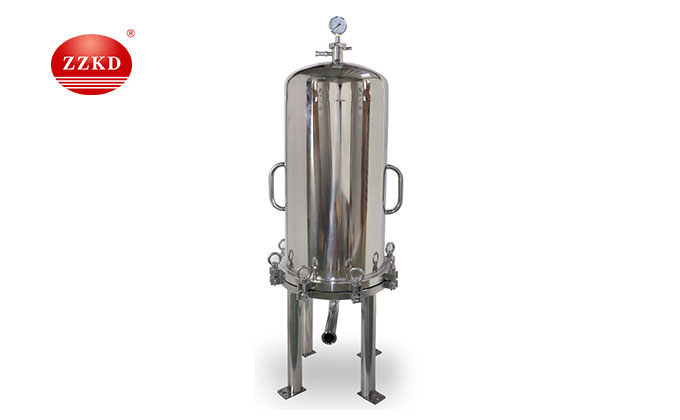

Lenticular Filter Housing

Lenticular filter housing is a new type of deep filter, which can be used to replace diatomaceous earth filter to filter, clarify and purify tiny impurities in various liquids. This filtration method is suitable for deep filtration technology, modular and closed system, especially for small flow or medium flow. ZZKD lenticular filter housing can be applied to filter cakes of international brands and has low cost. The overall structure is designed and manufactured according to the requirements of the sanitary level. There is no residue of the material liquid, easy to clean, and high-precision polishing; the bottom-in and bottom-out structure design is adopted to effectively avoid the turbulent flow of the material liquid and improve the filtration performance. The lenticular filter housing is equipped with up to 4 filter cakes as standard, which can meet the filtration requirements of large flow.

Working Principle of Lenticular Filter Housing:

Lenticular filter housing is to configure multiple filter elements in a closed container. The filter element is covered with a special filter cloth selected according to the characteristics of the material and liquid. When the liquid passes through the filter cloth, the solid matter in the liquid will gradually accumulate on the surface of the filter cloth. When these solid substances reach a certain thickness, a so-called "filter cake layer" is formed. Because the gaps between the "filter cake layer" particles are very small, the escape of particles and impurities in the liquid is blocked, so that the filtrate becomes clear and achieves an ideal filtration effect. When the "filter cake layer" exceeds a certain thickness, the rate at which the filtrate passes through the filter cake layer decreases, and the filtration efficiency becomes poor. At this time, it is necessary to remove the "filter cake layer", and then build a new "filter cake layer" to start a new cycle Wheel filter cycle.

The thickness control of "filter cake layer", filter residue cleaning, reconstruction of new filter cake layer, and monitoring of filtrate quality are the four major technologies of lenticular filter housing

The key points of the technique are also the four major technical difficulties.

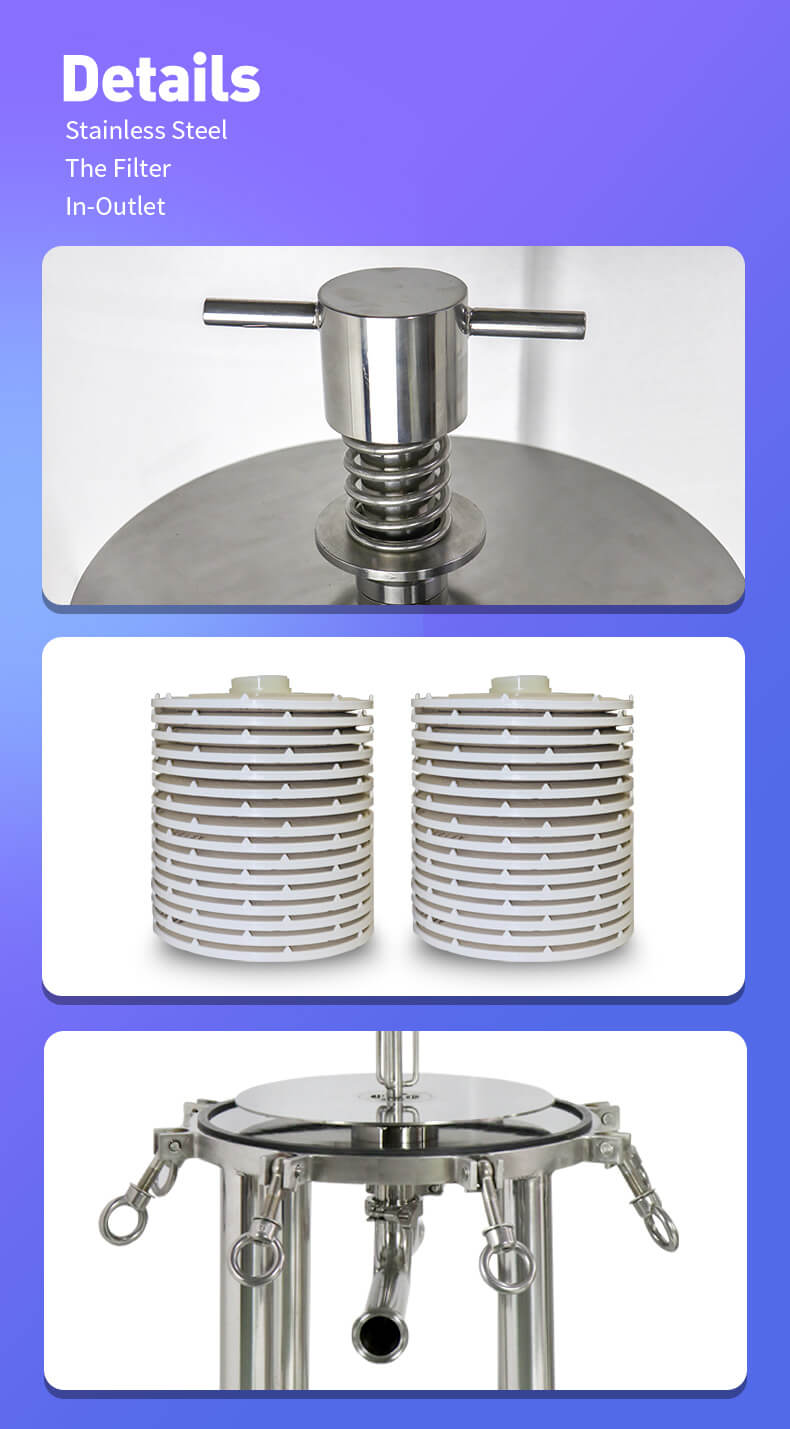

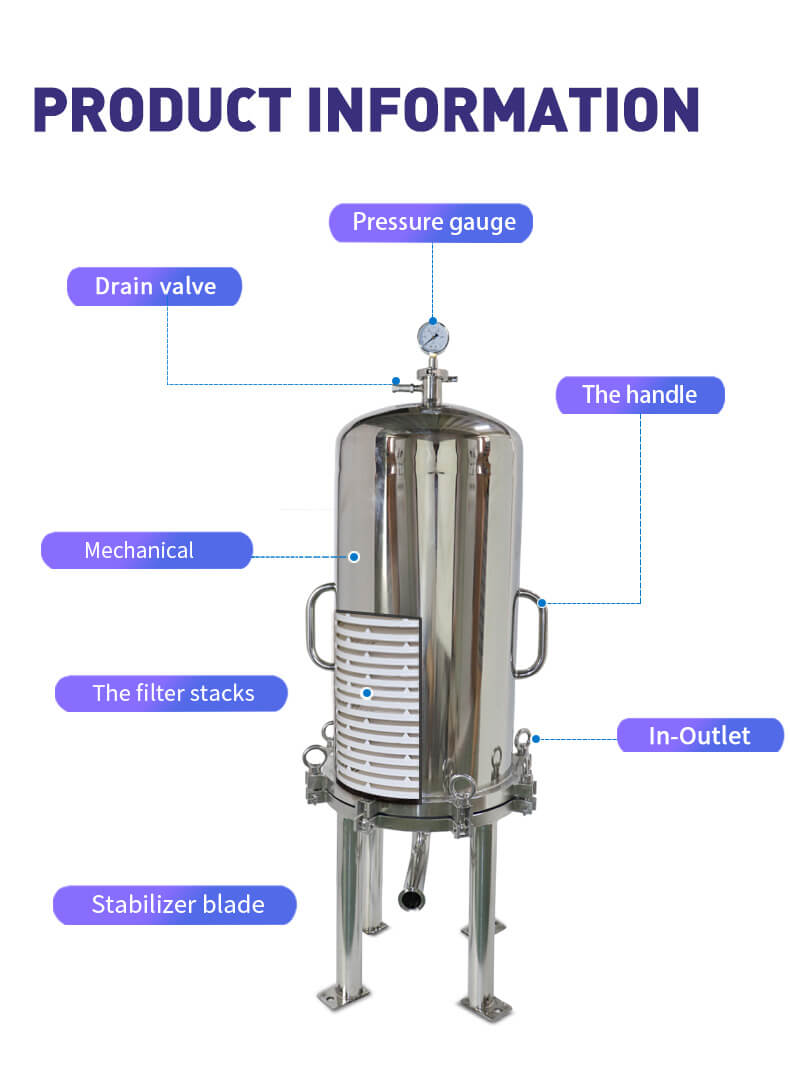

Lenticular Filter Housing Structure:

·Pressure gauge

The stainless steel pressure gauge can display the pressure value in the tank in real time.

·Stainless steel cylinder

The barrel material can be made of 304 stainless steel, which is resistant to high temperature, corrosion and durable.

·Surface treatment is food and pharmaceutical sanitation mirror polishing or electrolytic polishing.

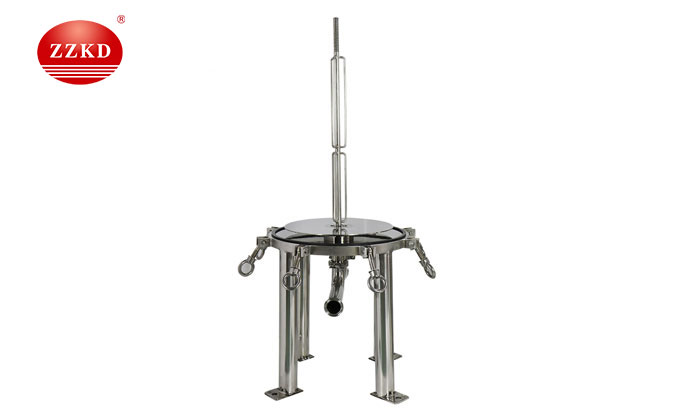

·import and export

The bottom-in and bottom-out structure design is adopted to effectively avoid the turbulent flow of the feed liquid and improve the filtration performance.

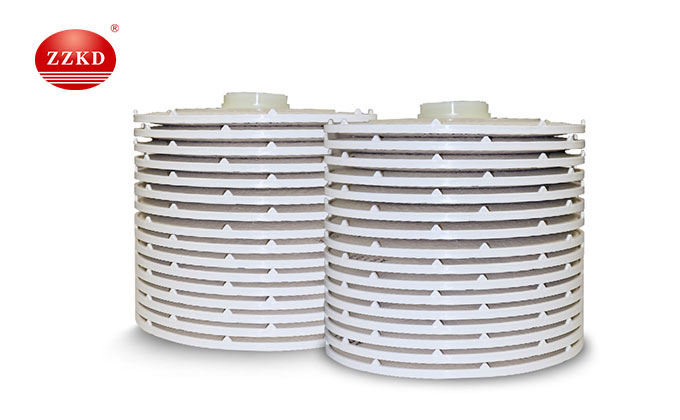

·Filter element

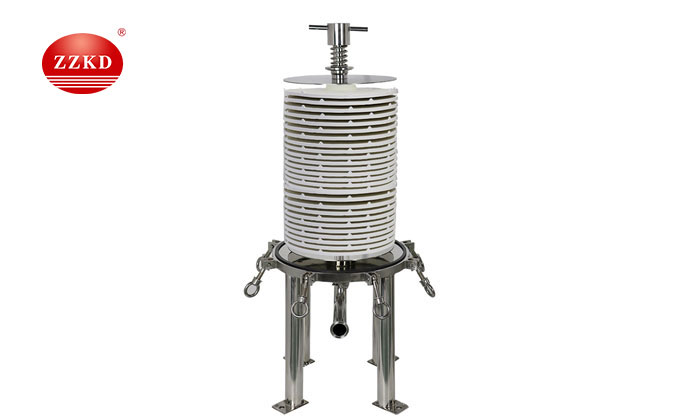

The lenticular filter housing is equipped with a maximum of 4 filter cakes as standard, a series of laminated cardboard filter elements, which are made of high-purity wood fiber and inorganic filter aids through a special process. Its internal crisscross three-dimensional space structure makes it a deep filter medium. Provides good filtering effect.

How Does Lenticular Filter Housing Work?

Lenticular filter housing is also known as surface filtration. It uses fabric, porous material or membrane etc. as filter medium. The pore size of the filter media does not have to be smaller than the particle size of the small particles. At the beginning of filtration, some small particles can enter or even pass through the small pores of the medium, but soon the bridging effect of the particles reduces the pore size of the medium to form an effective barrier. After filtration, the particles trapped on the surface of the medium form a filter residue layer called filter cake, and the purified filtrate passes through the filter cake layer. With the formation of the filter cake, it is the filter cake itself that really acts as a filter medium, so it is called filter cake filtration. Filter cake filtration is mainly suitable for occasions with large solid content (>1%).

1. Liquid Filling

Open the "liquid inlet valve" and start the "material pump", the liquid is injected into the lenticular filter housing cavity, and at the same time the "exhaust valve" at the top of the lenticular filter housing is automatically opened to discharge the air in the lenticular filter housing cavity.

2. Construction of Filter Cake Layer

When the lenticular filter housing cavity is filled with liquid, the "exhaust valve" is automatically closed, and the "circulation valve" is automatically opened. The liquid in the raw material tank is injected into the lenticular filter housing through the "inlet valve", and the material is discharged from the "circulation valve". Tank, circulation filtration begins, and the filter cake layer on the filter element is gradually produced and thickened.

3. Filter

When the filter cake layer reaches a certain thickness, the filtrate becomes clear. When the filtrate meets the quality requirements through automatic detection or sampling inspection, the "circulation valve" is automatically closed, the "clean liquid valve" is automatically opened, and the formal filtration begins, and the filtered liquid is discharged to the "clear liquid tank"

4. Drainage

When the flow rate of the "clear liquid flow meter" is less than a certain value, it means that the lenticular filter housing needs slag cleaning. First, the "positive intake valve" is automatically opened, and the "liquid intake valve" is automatically closed to filter out the liquid remaining in the lenticular filter housing cavity. When all the liquid in the lenticular filter housing cavity at the same height as the filter element is filtered out, open the "drain valve", so that the residual liquid that cannot be filtered out from the lower part of the lenticular filter housing cavity is discharged into the raw material tank through the "drain valve". When the process requirements do not allow the residual liquid to return to the "raw material tank", the "drain valve" is not opened, but the "residual liquid pump" is started, and the residual liquid is pumped to the "residual liquid spray port" and sprayed into the lenticular filter Housing, the compressed gas charged from the "positive air intake valve" will filter out the sprayed residual liquid to the "clean liquid tank". When the "residual liquid flowmeter" detects that there is no residual liquid in the chamber, the residual liquid filtering system is automatically closed and the draining work is completed.

5. Dry

When all the liquid in the lenticular filter housing cavity is discharged, close the "drain valve", fill the compressed gas from the "positive intake valve", open the "cleaning valve" or "circulation valve", and discharge the compressed body. Through the filter element Compressed air makes the filter cake dry quickly.

6. Cake Off

When the filter cake is dry, close the "positive air intake valve", "clear liquid valve" or "circulation valve", open the "back blow valve" to fill in compressed air, the filter bag expands, the filter cake falls off, and then close the "back blow valve". ", open the back blowing and deflation valve" to exhaust, and the filter bag retracts. This process is repeated several times, and the filter cloth on the filter element expands and contracts repeatedly, causing the filter cake to fall off quickly.

7. Slagging

After the "exhaust valve" is opened to discharge the gas, the "slag discharge valve" is opened, and the shed filter cake residue is discharged from the lenticular filter housing. When the slag discharge valve is blocked or the slag discharge is not smooth, open the "auxiliary slag discharge valve" and fill in compressed air to promote slag discharge.

8. Cleaning

After slag discharge, the "slag discharge valve" and "auxiliary slag discharge valve" are closed, the "cleaning valve" is opened to inject cleaning liquid, and the "drainage valve" is opened to discharge the cleaning liquid. The filter cloth restores the filtering effect under the repeated washing of the cleaning solution. (Select different cleaning solutions and cleaning methods according to the chemical properties of the materials).

Lenticular Filter Housing Features:

(1) It is easy to clean, and the water inlet and outlet can be equipped with special drain valves for convenient drainage.

(2) The filter element is easy to replace, reducing the leakage of lenticular filter housing.

(3) The stainless steel pressure gauge can display the pressure value inside the tank in real time.

(4) The product is made of stainless steel, which is high temperature resistant, corrosion resistant and durable.

(5) The lenticular filter housing is equipped with 4 filter cakes as standard, which can meet the filtration requirements of large flow.

(6) Bottom-in and bottom-out structure design is adopted to effectively avoid turbulent flow of materials and liquids and improve filtration performance.

Advantages of ZZKDLenticular Filter Housing:

1. Easy to use

The lenticular filter housing adopts PLC to control the filtration process. After setting the correct parameters, it can realize liquid intake, construction of filter cake layer,

Filtration, liquid drainage, cake removal, cake discharge, cleaning and other operating processes are fully automated, and operators do not need too much manual operation.

Pre.

2. Product quality improvement

Multiple filtration to improve quality: Compared with the traditional single filtration method, lenticular filter housing uses the structure of the filter cake itself to provide tailor-made filtration technology solutions, which really makes the filtrate clearer and further improves the product quality. The product quality is more stable.

3. Efficiency improvement

a. Fully automatic, no disassembly, repeated construction of the filter cake layer, which can be constructed repeatedly,

b. Comprehensive filtration technical support. We can help customers choose reasonable filtration temperature and pressure, suitable filter aids, and reasonable filter cake treatment methods according to the premise that users meet the process conditions, so as to comprehensively improve filtration efficiency.

4. Fully sealed to prevent pollution.

Fully sealed operation, which isolates the contact between liquid and air and other items, and prevents the product from being polluted by bacteria such as Escherichia coli, Staphylococcus aureus, and Pseudomonas aeruginosa.

Notes for Lenticular Filter Housing:

1. The lenticular filter housing can only be used according to the rated voltage/frequency marked on the nameplate.

2. The lenticular filter housing should be maintained every once in a while. Before cleaning and maintenance, be sure to turn off the lenticular filter housing

Source disconnected.

3. Please ensure that the wire plug does not get wet during cleaning, otherwise the plug must be wiped dry before reconnecting the power supply.

4. Do not unplug the power cord with wet hands.

5. If the lenticular filter housing is damaged, especially if the power cord is damaged, it cannot be used.

6. Do not disassemble or repair the lenticular filter housing privately to avoid danger or damage to the body.

Repairs should be performed by professionals.

Why Choose Us

Professional centrifuge equipment manufacturer

ZZKD Mechanical Instrument Equipment Co., Ltd. is a family integrating production and trade. Lenticular filter housing is one of our main products. At the same time, we can also customize according to your needs. The company has been established for more than ten years, providing equipment solutions for tens of thousands of enterprises and individuals at home and abroad, and has won unanimous praise from domestic and foreign customers.

Fast delivery

We have warehouses in Los Angeles in the United States, Valencia in Spain, and Thailand. We can choose the nearest warehouse for delivery according to the customer's geographical location, ensuring that the customer receives the goods quickly.

Perfect after-sales team

We provide a one-year warranty service for the products we sell. We have a professional after-sales team to deal with customers' after-sales problems, and can provide corresponding technical guidance through videos and other methods.

Parameter
