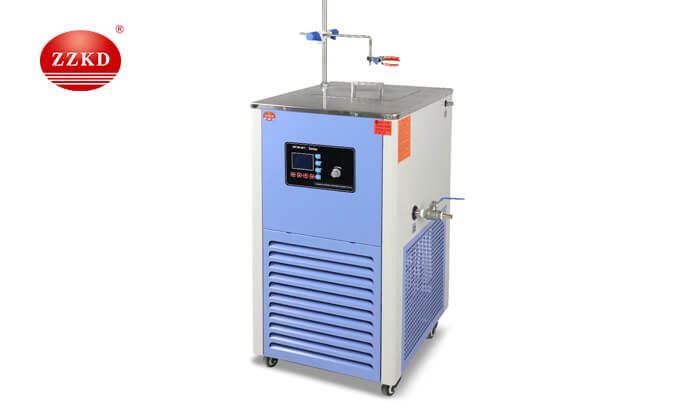

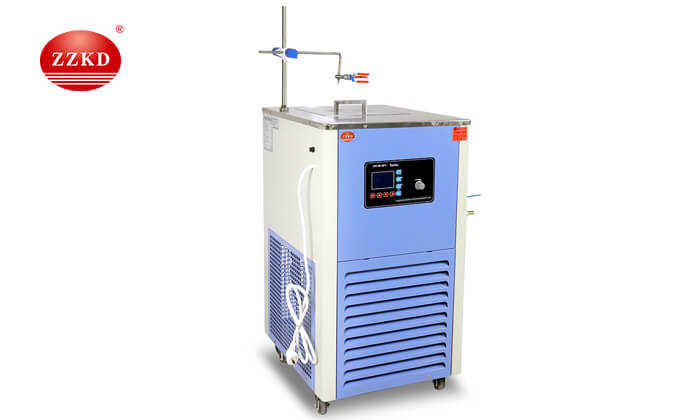

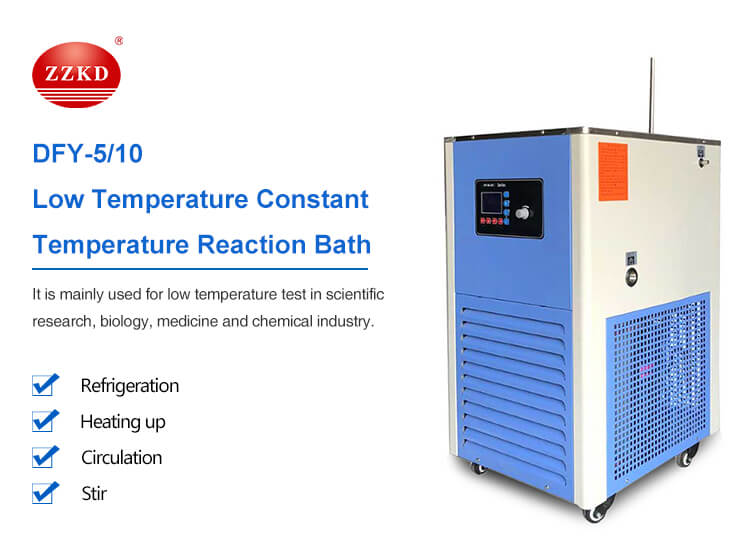

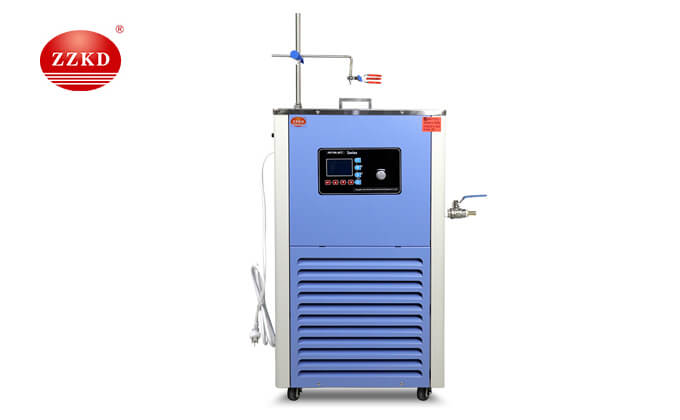

The low temperature thermostatic water bath is a new type of experimental instrument improved and manufactured by our company. It is suitable for low temperature experiments in scientific research, biology, physics, medicine, chemical industry and other departments. It can replace dry ice and liquid nitrogen for low temperature reaction and provide low temperature conditions for related equipment. It can also be used as a low temperature thermostatic water bath for viscosity measurement. It has bottom magnetic force Stirring, divided into two stages of constant temperature stirring, so that the temperature in the stainless steel tank is more uniform, and the intelligent temperature control is precise and so on.

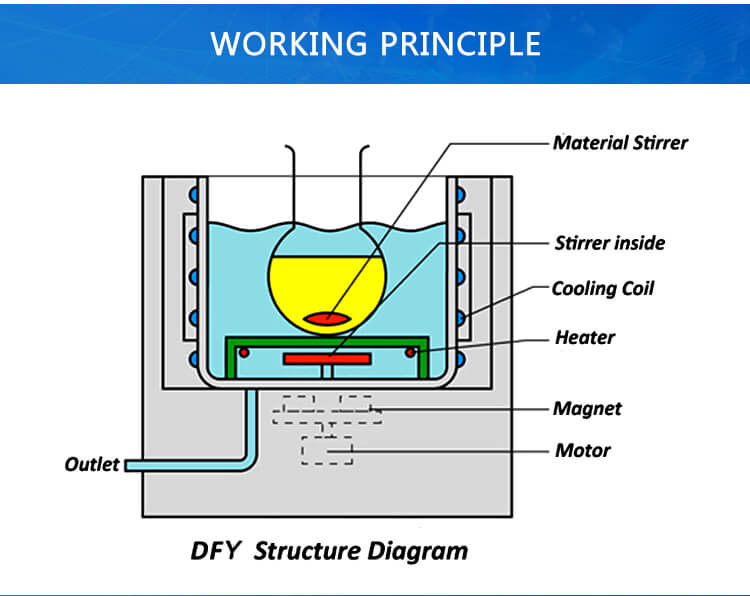

Working Principle of Low Temperature Thermostatic Water Bath:
The low temperature thermostatic water bath uses a fully enclosed compressor for mechanical refrigeration. There is a cooling copper coil on the inner wall of the cooling tank. The refrigerant (Freon) circulates continuously through the coil on the inner wall of the water tank to cool the refrigerant in the tank, and through the built-in circulation pump. The internal circulation reaction, or the external circulation pipeline transports the refrigerant to the interlayer or condensation coil of the supporting equipment, which indirectly cools the material in the reactor, cools and liquefies the steam that the condensation pipe contacts.
During external circulation, the lower outlet pipeline of the product is connected to the lower inlet pipeline of the kettle body or condenser, and the circulating liquid comes out from the upper circulation port and returns to the inlet of the product through the pipeline to form a complete circulation space. Generally, it can be connected to the interlayer of the double-layer reactor, the rotary evaporator, and the condensation coil of the reactor.
During internal circulation, put the reaction vessel into the bath and fix it, start the heating function, and keep the refrigerant temperature constant within the set range; start the magnetic stirring function, put the stirring bar into the material, and magnetically stir the material.
Low Temperature Thermostatic Water Bath Model:

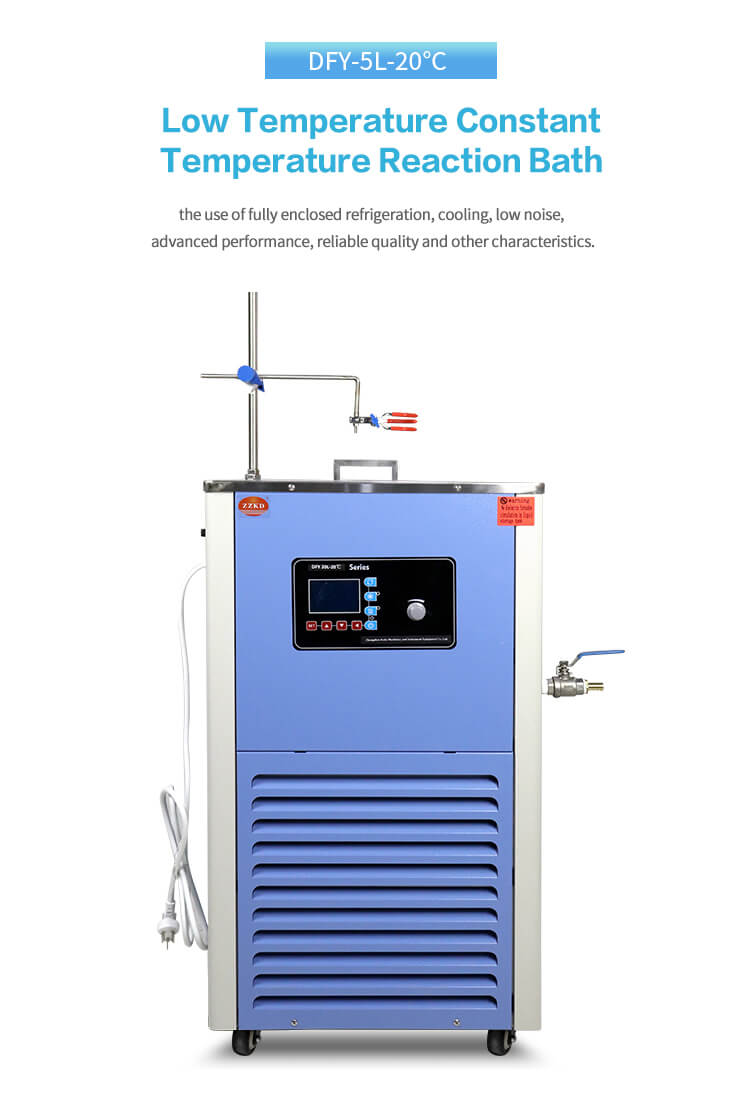

ZZKD Machineryhas been focusing on R&D and production of low temperature thermostatic water bath for many years. Low temperature thermostatic water bath is one of our main products. After several upgrades, there are more and more models and types of low temperature thermostatic water bath. more and more perfect. Currently, our low temperature thermostatic water bath models are: DFY-5/20, DFY-10/20, DFY-20/40, DFY-50/60, DFY-80/40, DFY-100/80, and we It can also be customized according to your needs.

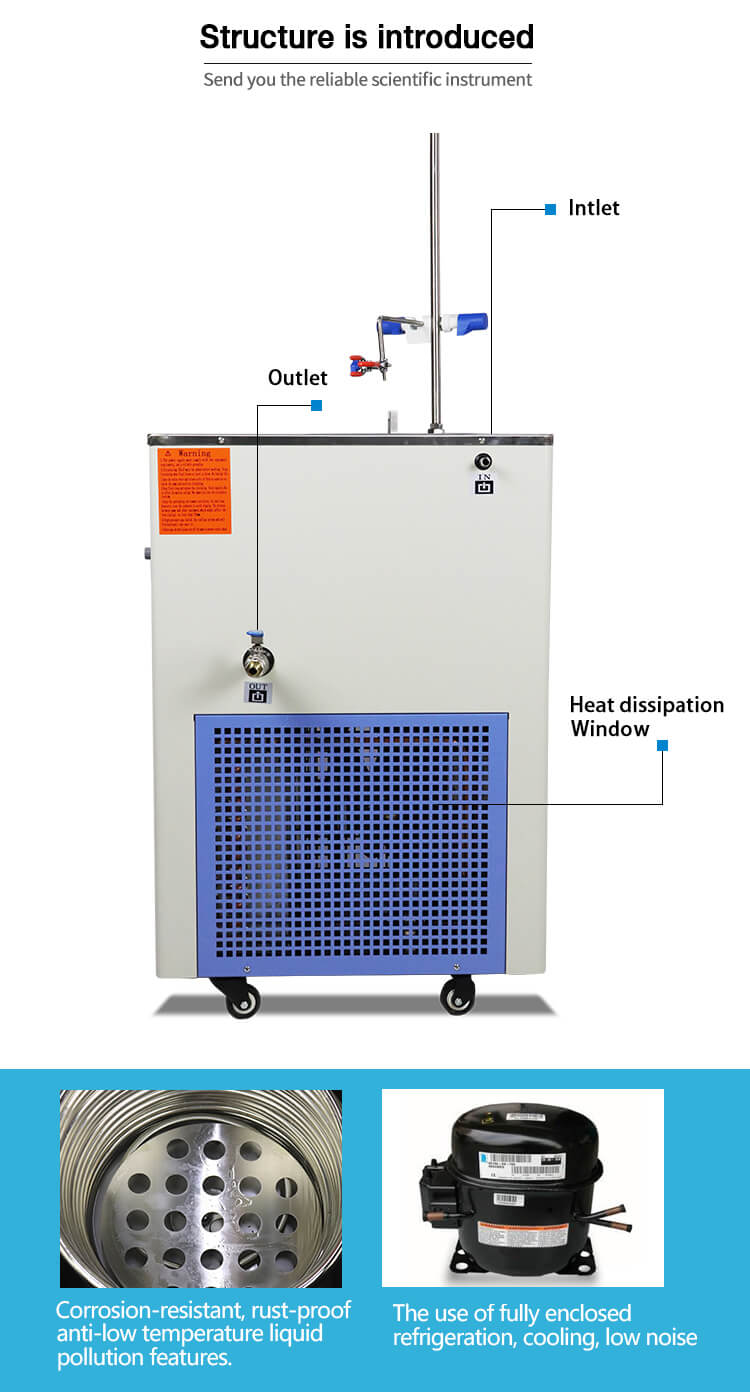

Low Temperature Thermostatic Water Bath Structure:

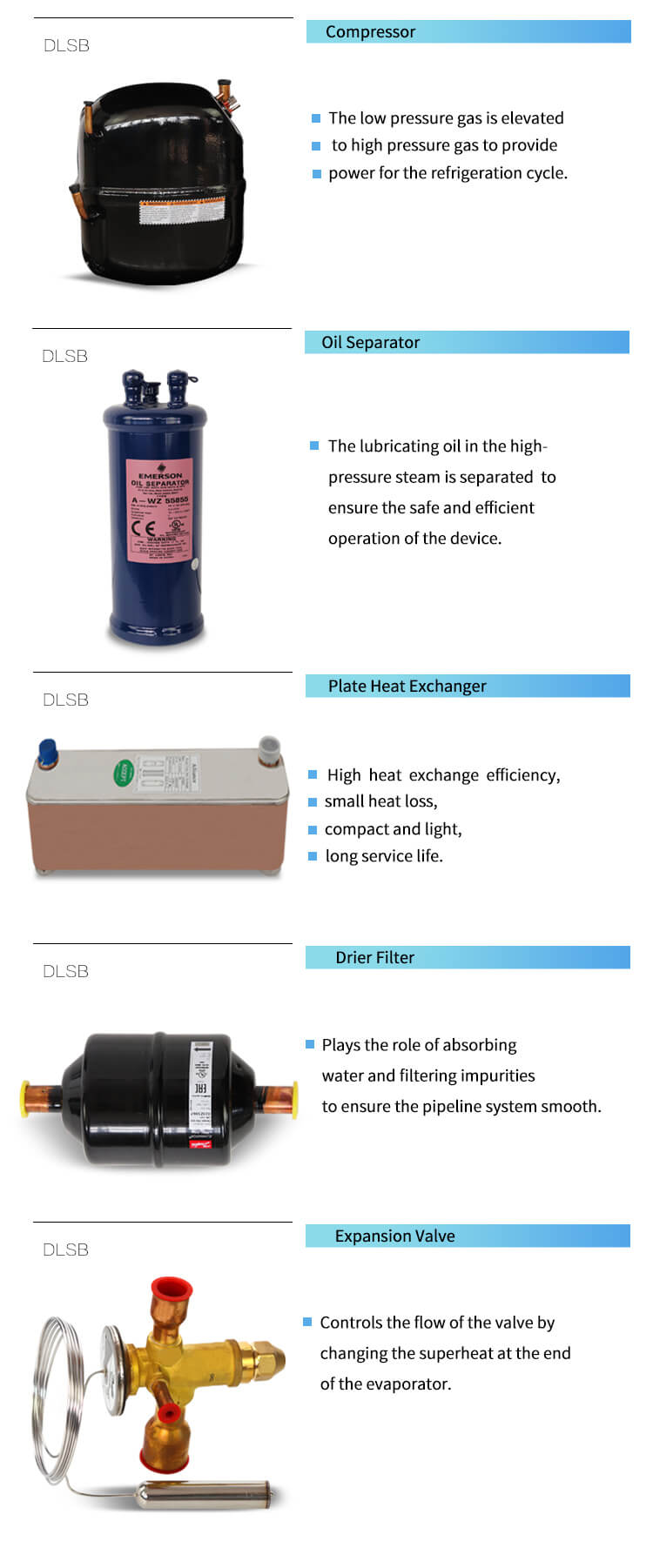

The main components of low temperature thermostatic water bath are compressor, reaction bath, magnetic stirrer and liquid crystal display.
Compressor
Balanced design, so that the compressor has little vibration, low noise and stable operation
Reaction bath
Stainless steel liner is used, and the surface of the coil evaporator is chrome-plated, Which is corrosion-resistant

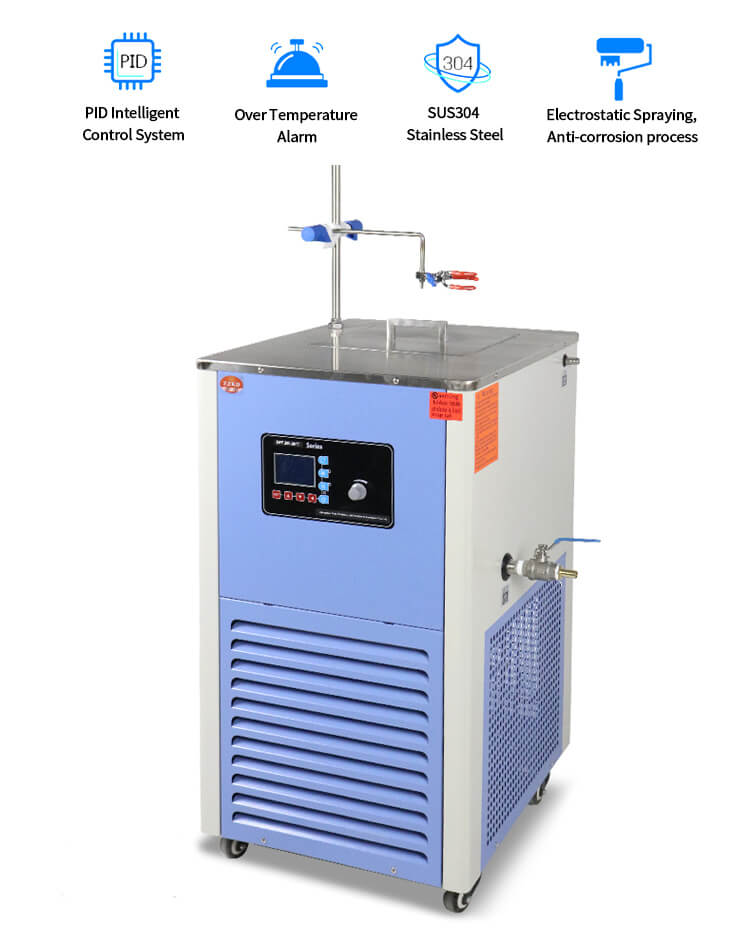

Low Temperature Thermostatic Water Bath Features:
1. The components that may be in contact with the working medium, such as the liquid tank liner, top plate, electric heater and evaporator, are made of stainless steel.
2. The controller of the intelligent digital display can simultaneously display the temperature setting value and actual value, as well as the over-temperature alarm value;
3. Closed circulation: The circulation management is completely closed, without oil mist and water absorption, which ensures the safety of the experiment and the life of the thermal fluid.
4. Protection device: It has self-diagnosis function; refrigerator overload protection; high-voltage pressure switch, overload relay, thermal protection device and other safety protection functions. The refrigeration system has multiple protection devices for time delay, overheating and overcurrent. All are imported original high-quality components to ensure reliability and service life.
5. Equipped with imported high-pressure pump: the pipe size is longer, which can smoothly carry out long-distance circulation, cooling or constant temperature external experimental container or establish a second constant temperature field.
6. High-density corrosion-resistant materials: the key interfaces of circulating pumps, cooling coils, outlets, and return ports that can circulate pure water are all made of stainless steel (SUS304).
How to Use Low Temperature Thermostatic Water Bath:
1. When using, add water or alcohol first, and the height should not be lower than the water level (marked on the instrument), otherwise it will affect the use effect.
2. Turn on the power, turn on the power switch, and select the temperature to be used.
3. Turn on the switch of the circulating pump to make the temperature of the water (alcohol) in the tank even.
4. When the temperature reaches the set temperature, you can choose to put in the object to be cooled according to the need, or draw out the cooling liquid to establish the second constant temperature field.
Precautions for Low Temperature Thermostatic Water Bath:
1. Attention when starting up:
Antifreeze or water must be added according to the reaction temperature before starting the machine.
2. Power warning:
The power supply must meet the requirements of the equipment and have reliable grounding.
3. Environmental attention:
There must be sufficient space around. The distance from other items or equipment that affects ventilation shall not be less than 400mm. It should be placed in a ventilated, dry and pollution-free room temperature environment. When the temperature is higher than room temperature, please turn off the refrigeration and keep the temperature constant. Please do not use ethanol when the temperature is higher than 40°C to avoid danger.
4. Maintenance:
Before opening the case, please disconnect the power (to prevent electric shock).
There is high-pressure gas in the refrigeration system, and non-professionals are not allowed to open it.
Why choose us
Professional reactor equipment manufacturer

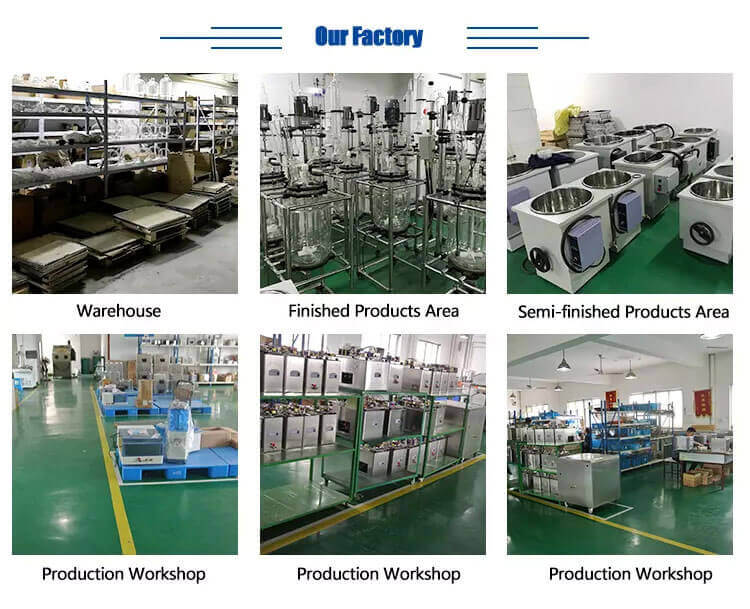

Zhengzhou Keda Machinery Equipment Co., Ltd. is a family integrating production and trade. Our main product is temperature control equipment. Low temperature thermostatic water bath is one of our main products for sale. Our low temperature thermostatic water bath models are as follows: : DFY-5/20, DFY-10/20, DFY-20/40, DFY-50/60, DFY-80/40, DFY-100/80. At the same time, we can also customize according to your needs. The company has been established for more than ten years, providing equipment solutions for tens of thousands of enterprises and individuals at home and abroad, and has won unanimous praise from domestic and foreign customers.
Fast delivery
We have warehouses in Los Angeles in the United States, Valencia in Spain, and Thailand. We can choose the nearest warehouse for delivery according to the customer's geographical location, ensuring that the customer receives the goods quickly.
Perfect after-sales team
We provide a one-year warranty service for the products we sell. We have a professional after-sales team to deal with customers' after-sales problems, and can provide corresponding technical guidance through videos and other methods.
Parameter
Specification | Storage volume(L) | Adjistable range for zero load(°C) | Temperature(°C) | Refrigerating capacoty(W) | Circulating pump flow rate(L/min) |
DFY-5/20 | 5 | -20~98 | ±0.1 | 172~2228 | 20 |
DFY-10/20 | 10 | -20~98 | ±0.1 | 980~1320 | 20 |
DFY-20/40 | 20 | -40~98 | ±0.1 | 480~4780 | 20 |
DFY-50/60 | 50 | -60~98 | ±0.1 | 2540~11500 | 20 |
DFY-80/40 | 80 | -40~98 | ±0.1 | 367~11025 | 20 |
DFY-100/80 | 100 | -80~RT | ±0.1 | 1020~15330 | 20 |
Specification | Storage volume(L) | Adjistable range for zero load(°C) |
DFY-5/20 | 5 | -20~98 |
DFY-10/20 | 10 | -20~98 |
DFY-20/40 | 20 | -40~98 |
DFY-50/60 | 50 | -60~98 |
DFY-80/40 | 80 | -40~98 |
DFY-100/80 | 100 | -80~RT |
