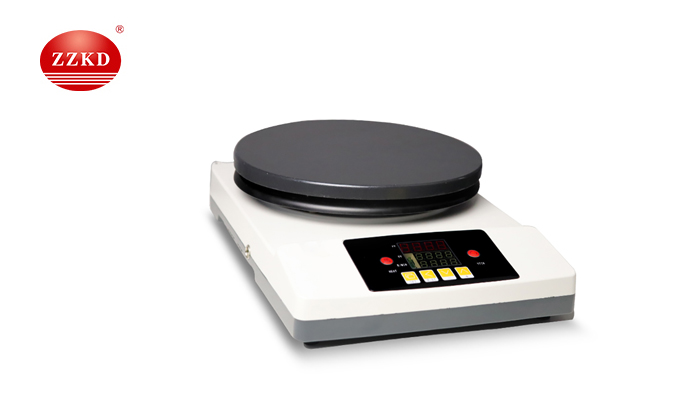

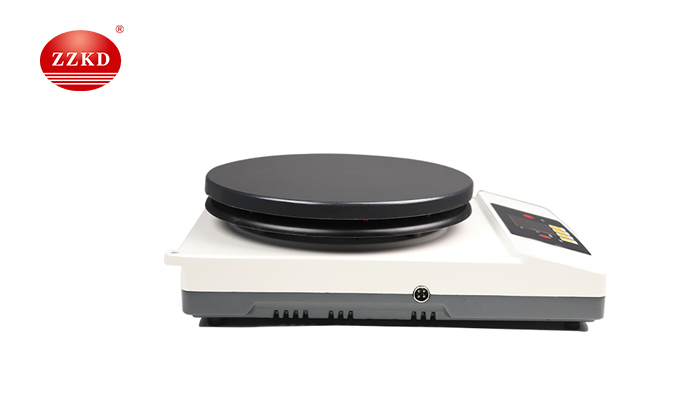

Magnetic Stirrer with Hot Plate

The magnetic stirrer with hot plate is driven by a micro-motor to rotate a high-temperature-resistant powerful magnet to generate a rotating magnetic field to drive the stirrer in the container to rotate, thereby stirring, mixing or auxiliary heating the liquid in the container so that the solution can be fully mixed at the set temperature laboratory apparatus.

Magnetic Stirrer with Hot Plate Working Principle:

The magnetic stirrer with hot plate uses the same-sex repulsion property of magnetic substances to drive the magnetic stirrer to rotate by constantly changing the polarity of the two ends of the base. Magnetic stirrer with hot plate is suitable for heating or heating and stirring at the same time. It is suitable for liquids with low viscosity, or solid-liquid mixtures. Using the principle of magnetic field and vortex, put the liquid into the container and put the stirring bar into the liquid at the same time ,When the magnetic stirrer with hot plate generates a magnetic field, it drives the stirrer to move in a circular motion, so as to achieve the purpose of stirring the liquid: using the same-sex repulsion characteristics of magnetic substances, the magnetic stirrer is driven to rotate by constantly changing the polarity of the two ends of the base .

Models of Magnetic Stirrer with Hot Plate:

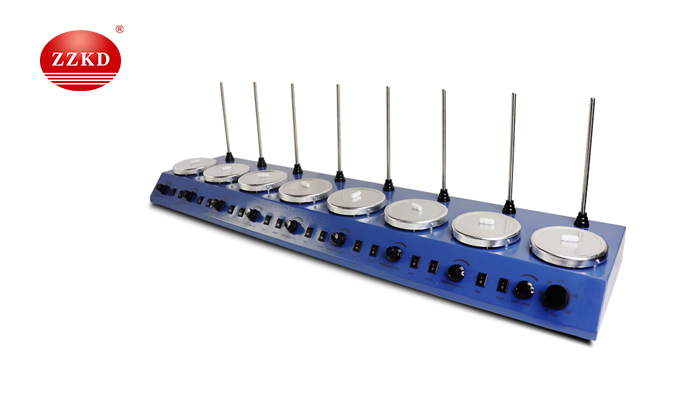

ZZKD Machinery has been focusing on R&D and production of magnetic stirrer with hot plate for many years. Magnetic stirrer with hot plate is one of our main products. After several upgrades, there are more and more models and types of ultra-magnetic stirrer with hot plate. It is also getting better and better. Magnetic stirrer with hot plate Our current models are: 85-1, SZCL-2, DCG-C, HJ-6, ABH-500, ABH-1000, ABH-2000.

The Structure of Magnetic Stirrer with Hot Plate:

The magnetic stirrer with hot plate is mainly composed of reducer, connecting body, magnetic drive, bearing body, sealing barrel, sliding bearing, stirring shaft, paddle and other components. Among them, the magnetic drive consists of three parts: inner and outer magnetic rotors and isolation sleeves. In the magnetic stirrer with hot plate, the paddle, the stirring shaft and the inner magnetic rotor are connected as a whole, and the working part is supported by bearings, which is the driven part of the equipment. The outer magnetic rotor is connected with the reducer to form a power part, which is the active part of the equipment. The driven part and the driving part are completely isolated by the spacer.

When working, the motor drives the outer magnetic rotor to rotate through the reducer. Since there is a magnetic field between the inner and outer magnetic rotors, the outer magnetic rotor will act on the inner magnetic rotor through magnetic coupling, thereby driving the work piece connected to the inner magnetic rotor (that is, stirring shaft, etc.) to rotate synchronously to achieve the purpose of non-contact torque transmission.

Magnetic Stirrer with Hot Plate Features:

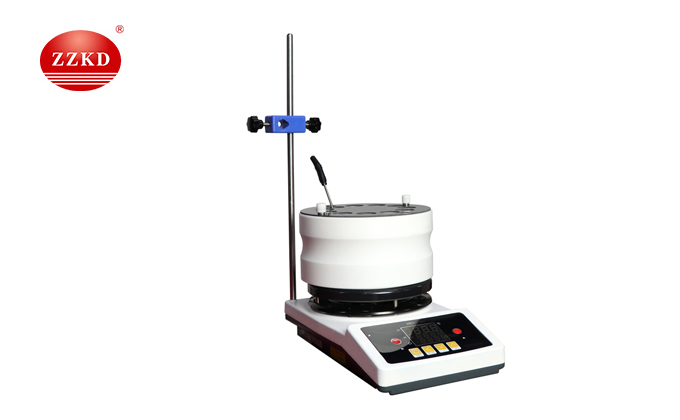

1. It is heated by an aluminum Teflon pot, which can be water bath or oil bath. the

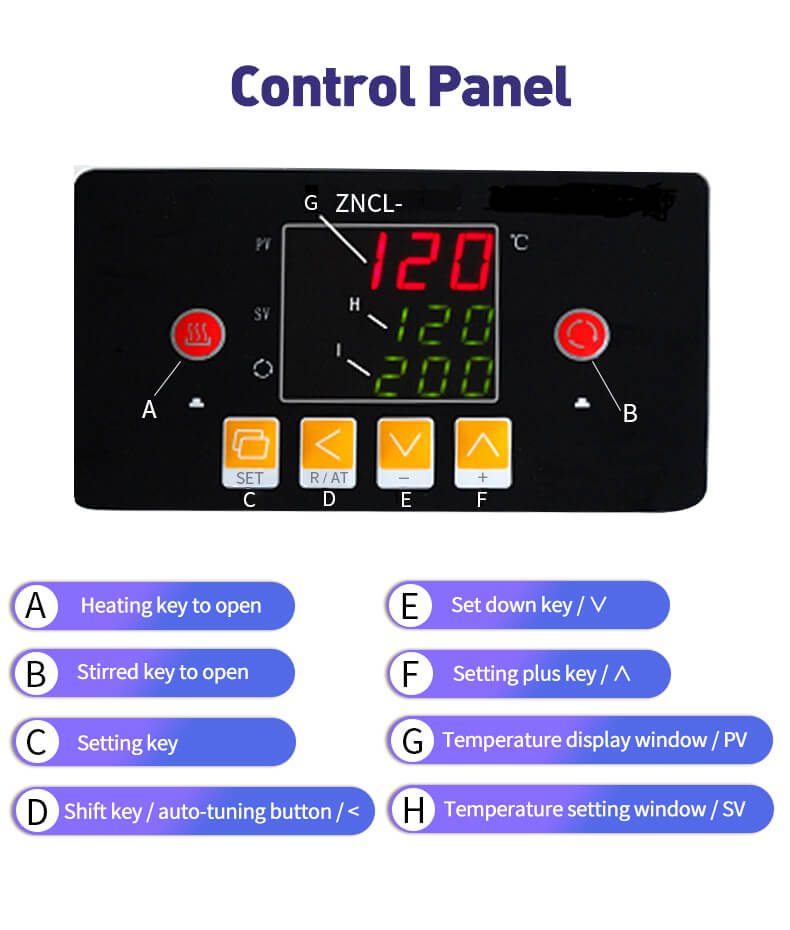

2. Fuzzy PID control algorithm is used for temperature control, double-screen digital display, self-tuning function, and high measurement accuracy. the

3. It can heat and stir the 50-5000ml standard or non-standard reaction bottle. the

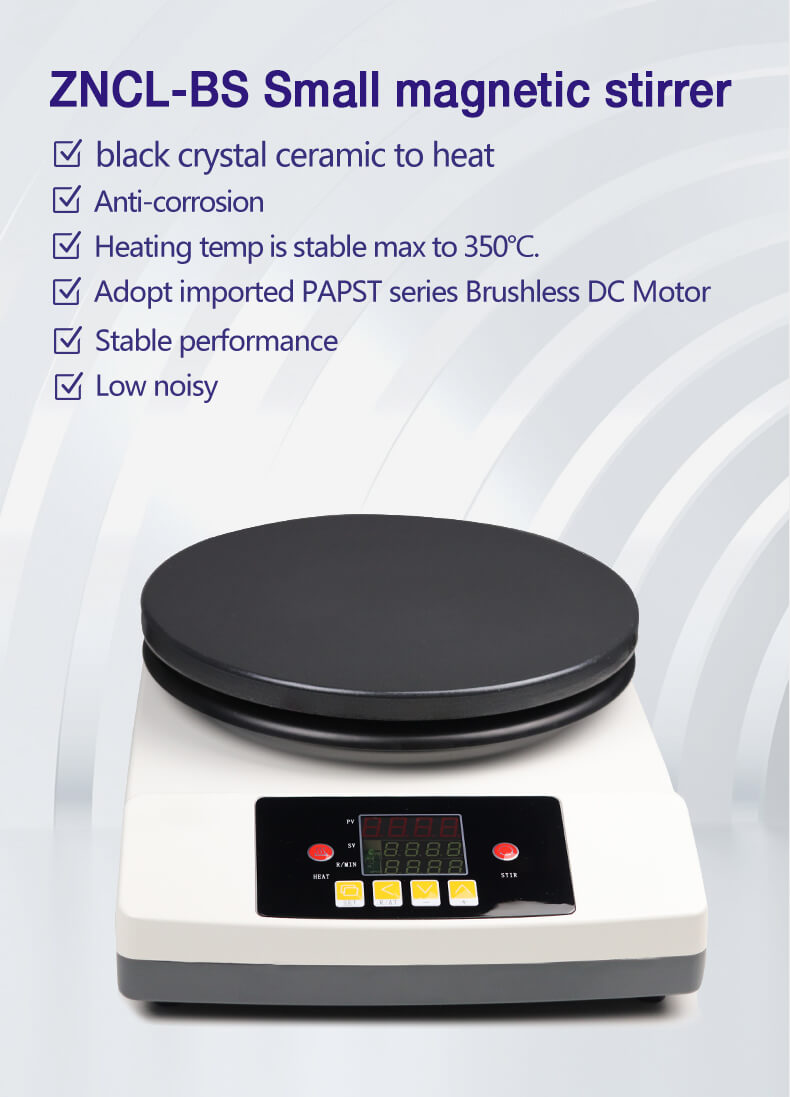

4. It adopts German PAPST series DC brushless motor, which has stable performance, low noise, long life and no sparks. the

5. The shell adopts a one-time flame-retardant reinforced PBT injection molded shell, which is resistant to high temperature, anti-corrosion, and has good insulation performance. the

6. The 30° inclined control panel is suitable for sitting and standing viewing angles. the

7. Stepless speed regulation, stable at low speed and powerful at high speed. the

8. Digital speed display function. the

How to Use Magnetic Stirrer with Hot Plate:

1. Turn on the power, the indicator light is on, then adjust the speed control knob clockwise, the speed is from slow to fast, adjust to the required speed, the stirring bar rotates to drive the solution to stir;

2. When constant temperature heating is required, insert the temperature measuring probe into the solution, and insert the plug into the stirrer seat (corresponding to the water bath collector type magnetic stirrer with hot plate, because the temperature measuring probe is integrated inside the water bath, no This step), adjust the temperature knob to the desired temperature;

3. When timing operation is required, turn the timing switch clockwise to the required time position. At this time, the power light is on and the instrument is working. When the timing switch automatically turns to the starting position, the stirring will stop automatically (this step is only for For models with this timing function);

4. Turn off the power switch after use, disassemble the reaction device, and unplug the magnetic stirrer with hot plate power plug.

Precautions for Using Magnetic Stirrer with Hot Plate:

1. When adjusting the speed, it should be gradually adjusted from low speed to high speed. Do not start directly at high speed, so as to avoid the agitator being out of sync and causing beating;

2. The magnetic stirrer with hot plate should be kept clean and dry, especially do not allow the solution to enter the machine, and cannot be heated when not stirring;

3. When you find that the stirrer jumps or does not stir during stirring, please cut off the power to check whether the bottom of the beaker is flat and whether the position is correct. At the same time, please measure it. The current voltage is between 220V±10V, otherwise the above will appear. Happening;

4. Medium-speed operation can prolong the service life of the agitator and prevent violent vibration during work;

5. In order to ensure safety, try to connect the ground wire when using it, and cut off the power supply in time after the work is over.

Why Choose Us

Professional drying equipment manufacturer

ZZKD Mechanical Instrument Equipment Co., Ltd. is a company integrating production and trade. Our main product is temperature control equipment. Magnetic stirrer with hot plate is one of our main products for sale. Our magnetic stirrer with hot plate models are: 85- 1, SZCL-2, DCG-C, HJ-6, ABH-500, ABH-1000, ABH-2000. At the same time, we can also customize according to your needs. The company has been established for more than ten years, providing equipment solutions for tens of thousands of enterprises and individuals at home and abroad, and has won unanimous praise from domestic and foreign customers.

Fast delivery

We have warehouses in Los Angeles in the United States, Valencia in Spain, and Thailand. We can choose the nearest warehouse for delivery according to the customer's geographical location, ensuring that the customer receives the goods quickly.

Perfect after-sales team

We provide a one-year warranty service for the products we sell. We have a professional after-sales team to deal with customers' after-sales problems, and can provide corresponding technical guidance through videos and other methods.

Parameter
