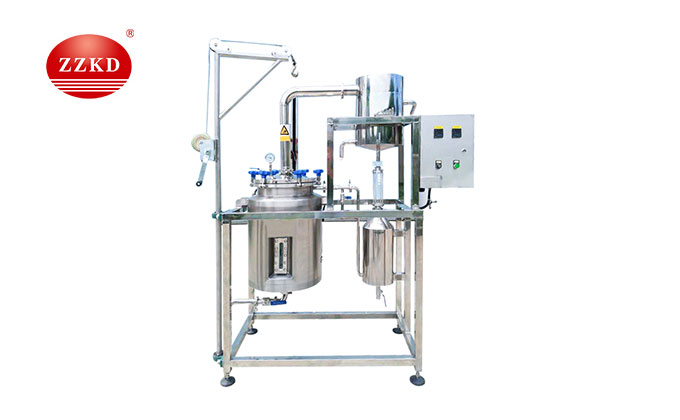

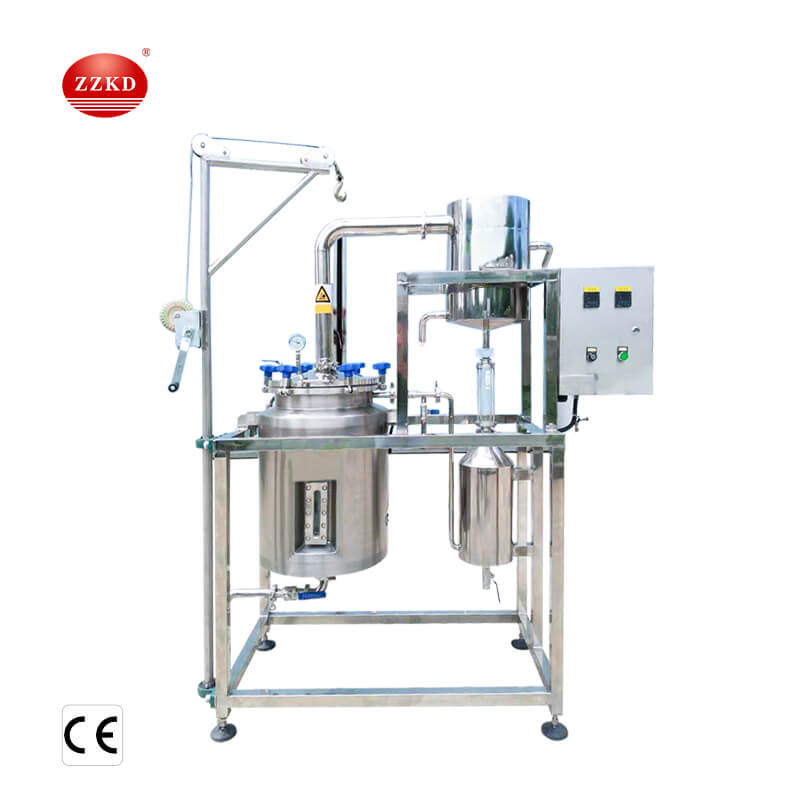

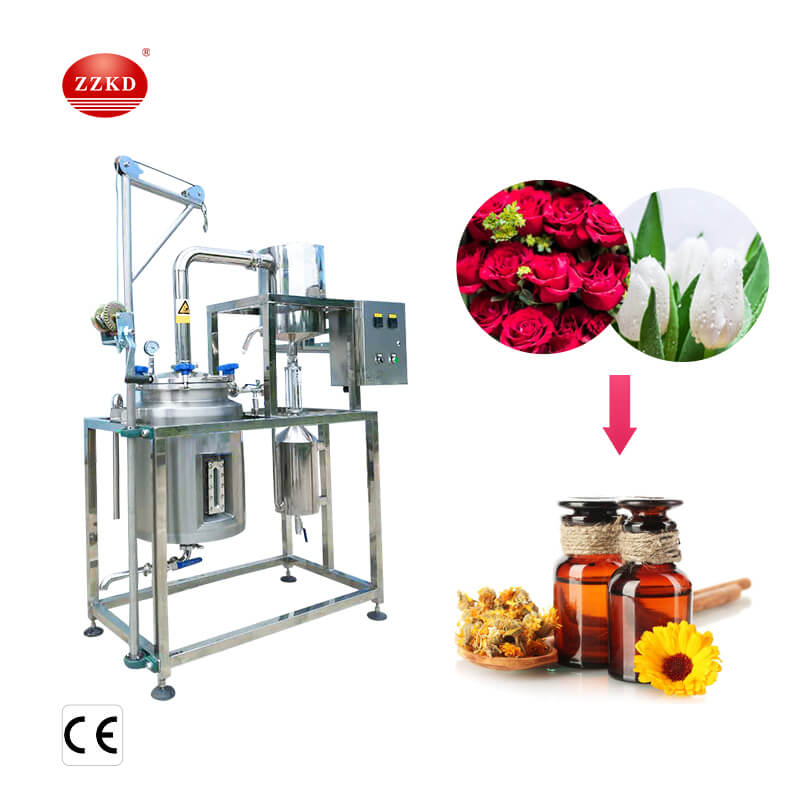

Small Essential Oil Extraction Machine

Small essential oil extraction machine is suitable for co-water and water-isolated distillation extraction processes of conventional oils and aromatic oils in plant branches, leaves, flowers, grasses and animal materials with high oil content. The structure of the equipment is exquisite, and the operation is very simple.

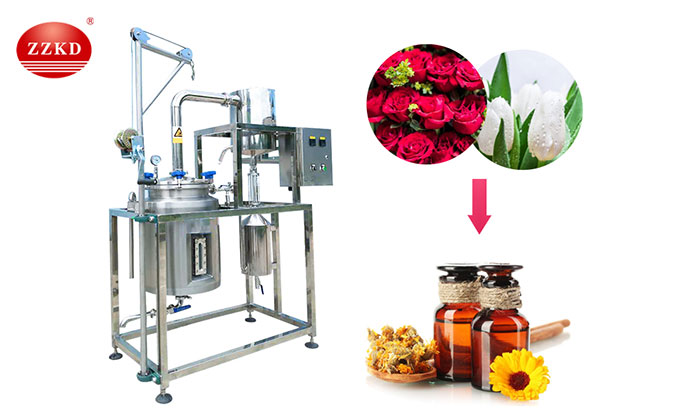

The small essential oil extraction machine produced by Zhengzhou Keda is aimed at the extraction and collection of plant volatile oils in industries such as traditional Chinese medicine, essential oils, biopharmaceuticals, and food. It is not only suitable for various vanilla plants, but also can be used for extracting essential oils of flowers such as roses and marigolds, and has low cost and strong applicability. Plant aromatic oil and water form an immiscible system of essential oil and water. When heating, as the temperature increases, the essential oil and water will evaporate at a faster rate, and a mixture of steam will be generated. The steam will be introduced into the condenser through the gooseneck on the top of the pot to obtain The liquid mixture of water and essential oil, the essential oil product can be obtained after oil-water separation. In addition, this device adopts electric heating mode to generate water vapor, and the firepower can be adjusted according to the actual situation.

Product Classification and Model:

Small essential oil extraction machines are mainly divided into laboratory small essential oil extraction machines and large essential oil extraction machines

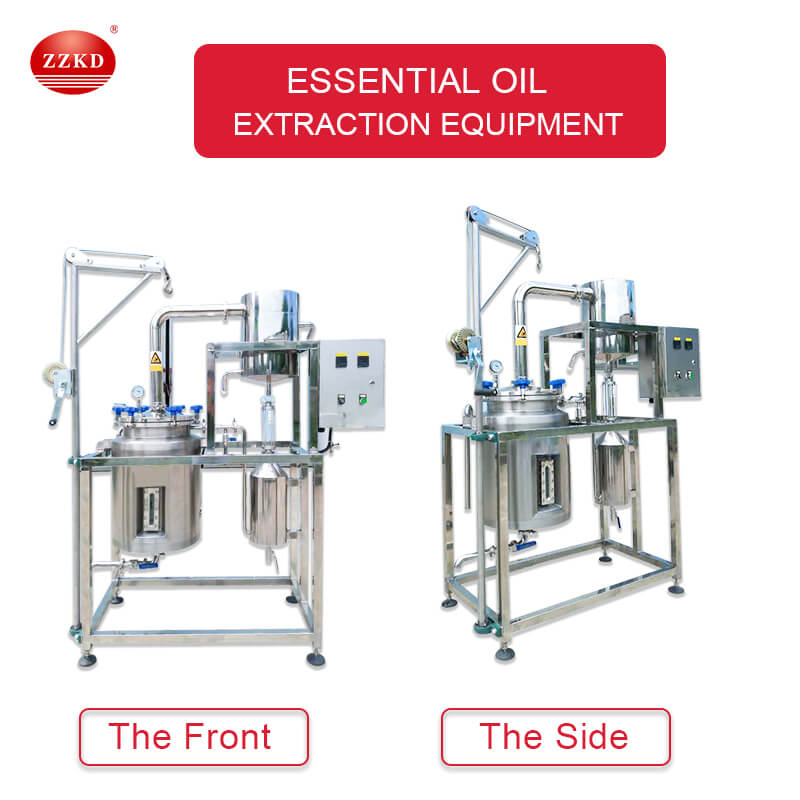

The laboratory-type small essential oil extraction machine adopts ordinary water and water-dividing distillation extraction technology, combined with advanced control system, reasonable structure design and superior performance. The operation is simple and flexible, and one person can easily complete the entire production. The main models of laboratory-type small essential oil extraction machine are: TQ-10L, TQ-20L, TQ-50L, TQ-100L, TQ-200L and TQ-500L. The oil-water separators of laboratory-type small essential oil extraction machine are made of high borosilicate glass And made of SUS304 stainless steel. The control system uses Ruitai control system, which has a higher degree of automation and more precise temperature control. The whole machine is made of 0CR18NI9TI and high-quality SS304.

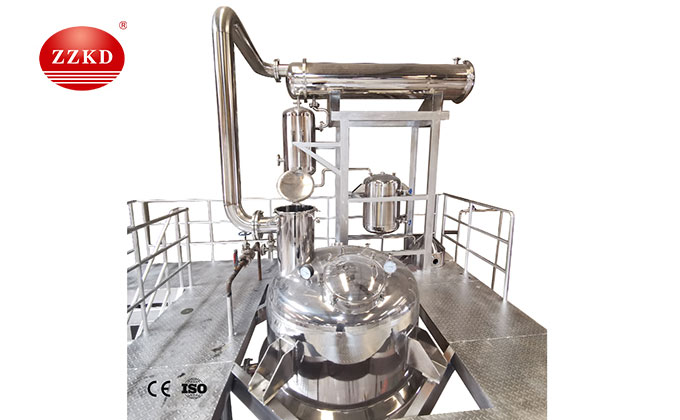

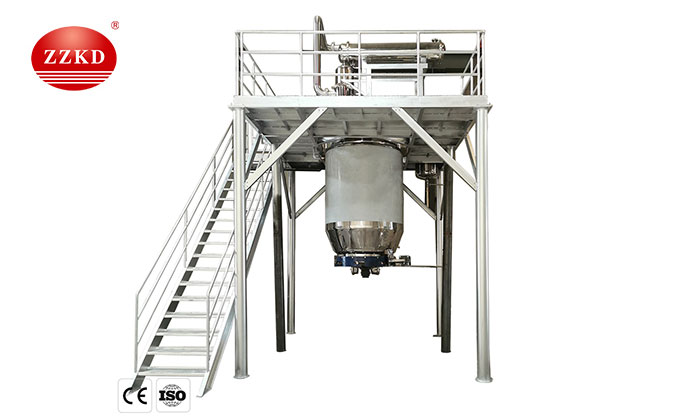

The large-scale essential oil extraction machine has a capacity of 3000L, and all tanks of the equipment (extraction tank, condenser, cooler, buffer tank, water and oil separator, pure dew storage tank, double filter) and tank inlet and outlet They are all made of 304 stainless steel and are suitable for the collection and extraction of plant volatile oils in other industries such as traditional Chinese medicine, health care products, biopharmaceuticals, food, and cosmetics. Water distillation or steam distillation method can be used according to different materials, using gas or electric indirect heating method, combined with advanced automatic control system, high efficiency, classic process of small essential oil extraction machine, equipped with multi-layer distillation basket, suitable for extraction from flowers, leaves, grass , Fragrance factory and other extraction oil. When used, it needs to be equipped with cooling tower, circulation pump, air compressor, operating platform, stainless steel pipes and valves.

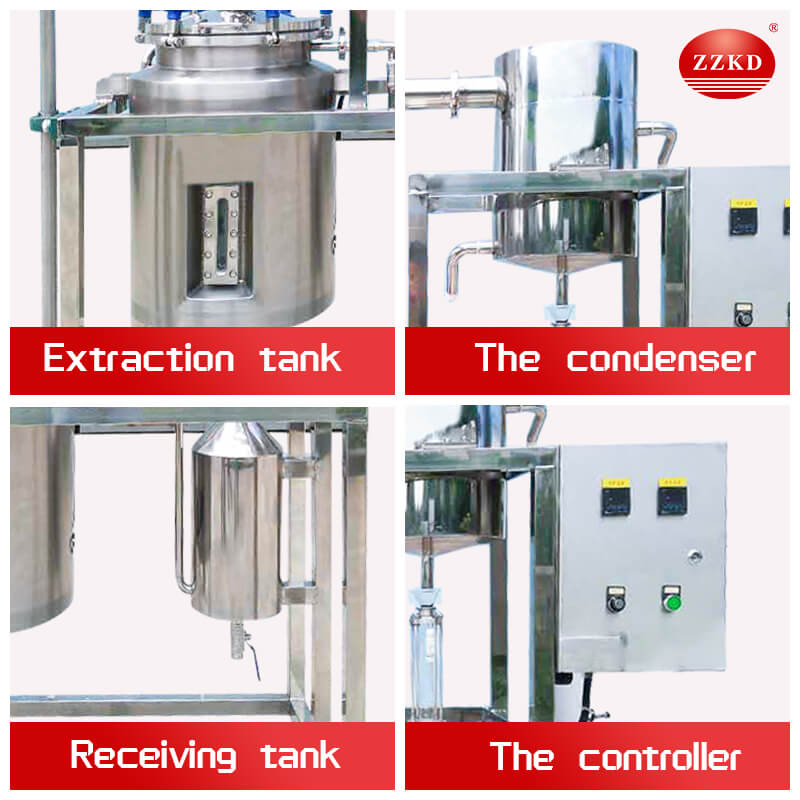

The Composition Of the Small Essential Oil Extraction Machine:

TQ new type small essential oil extraction machine is used to extract volatile components (volatile oil) during the production of medicines and foods. It consists of a gas-liquid separator, a cooler, two oil-water separators, a volatile oil collector also used as an extractor, an extract inlet, an explosion-proof deceleration motor, a stirrer, a pipe connected to the atmosphere, and a hydraulic steady flow pipe. The distillation equipment is made of S304 stainless steel. The products include control box, manhole, cleaning ball, water inlet, optical port, observation mirror, spare port, pressure gauge port, thermometer port, return port, outlet, steam nozzle and others. Accessories.

Small Essential Oil Extraction Machine Details:

1. Extraction system volume: 10L-3000L.

2. Condensing system structure: coil condenser or shell and tube condenser.

3. Distillation system structure: material basket distillation system.

4. Temporary storage tank for distillate: match with the extraction system.

5. Equipment heating system: electric or steam boiler.

6. Oil-water separation system: stainless steel with glass mirror.

7. Equipment temperature control system: steam proportional valve or manual control.

8. Driving: match the tank volume.

9. Temperature control system: touch screen temperature display.

10. Operating platform: SUS304 Taigang.

Uses of Small Essential Oil Extraction Machines:

Small Essential Oil Extraction Machine can be used in various process operations such as atmospheric pressure, water decoction, wet soaking, heat reflux, forced circulation infiltration, aromatic oil extraction and organic solvent recovery in traditional Chinese medicine, food, and chemical industries. Specific applications: recovery of Chinese herbal medicine, western medicine, glucose, animal protein, vegetable protein, brewing, starch, oral liquid, chemical industry, health food, pigment, additive, monosodium glutamate, dairy product, and industrial alcohol.

Process of Small Essential Oil Extraction Machine:

The distillation method of essential oil extraction is a common method for extracting aromatic plant essential oils, and 90% of aromatic plant essential oils are extracted by distillation. In this method, the plant parts (flowers, leaves, etc.) containing the aromatic substances are placed in a large stainless steel distillation vessel (stiller) and heated or steamed at the bottom of the vessel. When the hot steam fills the container, the aromatic essential oil components stored in the plant will evaporate with the water vapor, and with the water vapor, it will pass through the condensing tube above and then be introduced into the condenser. The condenser is surrounded by cold water to cool the steam into an oil-water mixture, which then flows into the oil-water separator. Oil that is lighter than water will float on the surface of the water, and oil that is heavier than water will sink to the bottom of the water, and the remaining water is pure dew. Then use an oil-water separator to further store the essential oil and pure dew separately.

Essential oil extraction and distillation methods are divided into water distillation, water distillation, and steam distillation. The distillation method should be selected according to the characteristics of different materials.

Water Distillation

Water distillation is to put the material to be distilled on the sieve plate in the distillation pot, pour clean water under the sieve plate, and the liquid level of the clean water should not touch the material. It can directly heat the water in the pot with steam, heat the water in the pot with high-temperature steam, and heat the water in the pot with an electric jacket to make it generate steam to achieve the purpose of distillation

Distilled in Water

Distillation in water is to put the material to be distilled into the distillation pot, and pour clean water into the pot. The ratio of clean water to the material is different depending on the material. Specific methods such as "water distillation".

Steam Distillation

Steam distillation is to put the material to be distilled on the sieve plate in the distillation pot, and the saturated water vapor is passed under the sieve plate to achieve the purpose of distillation.

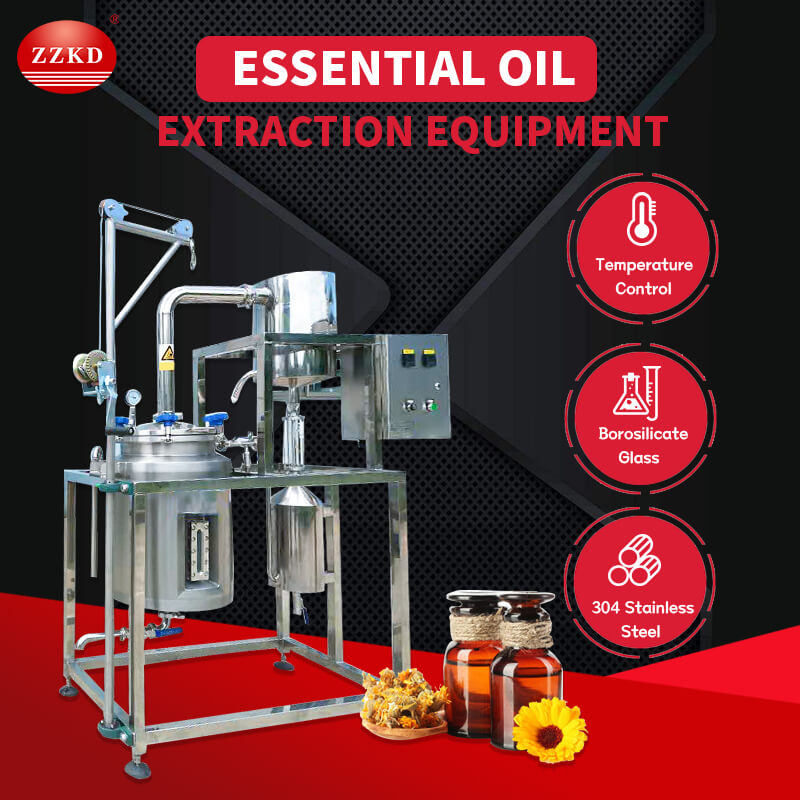

Advantages of Small Essential Oil Extraction Machine:

1. The equipment can be heated by heat conduction oil or by steam

2. The tank body is designed as a three-layer structure, with an inner tank, a heating layer, and an insulation layer, which can effectively reduce the problem of heat loss during use. The heat preservation time is long and the effect is good, which can effectively reduce the cost of use

3. Distillation method: optional water distillation, water distillation, steam distillation

4. Self-owned patent, easy operation of oil-water separation device, effectively improving the yield of essential oil

5. PLC engineering software control system, the boiler temperature, material temperature, extraction time and other parameters can be set through the touch screen

6. Made of 304 stainless steel, the inner surface of the tank is mirror-finished, and the outer surface is matte-treated, meeting food-grade requirements

Why Choose Us

Professional extraction equipment manufacturer

Zhengzhou Keda Machinery Equipment Co., Ltd. is a family integrating production and trade. Our main product is laboratory extraction equipment. Small essential oil extraction machine is one of our main products for sale. Our essential oil extraction machine models are: TQ-10L , TQ-20L, TQ-50L, TQ-100L, TQ-200L and TQ-500L can also be customized according to your needs. The company has been established for more than ten years and has provided tens of thousands of enterprises and individuals at home and abroad. The equipment solutions have won unanimous praise from domestic and foreign customers.

Fast delivery

We have warehouses in Los Angeles in the United States, Valencia in Spain, and Thailand. We can choose the nearest warehouse for delivery according to the customer's geographical location, ensuring that the customer receives the goods quickly.

Perfect after-sales team

We provide a one-year warranty service for the products we sell. We have a professional after-sales team to deal with customers' after-sales problems, and can provide corresponding technical guidance through videos and other methods.
