Spray Dryer Machine

Spray dryer machineis a device that can complete drying and granulation at the same time. According to the process requirements, the pressure, flow rate and the size of the spray hole of the material liquid pump can be adjusted to obtain the required spherical particles in a certain size ratio. The liquid material is sprayed into mist with special equipment, and it is dried in contact with hot air.

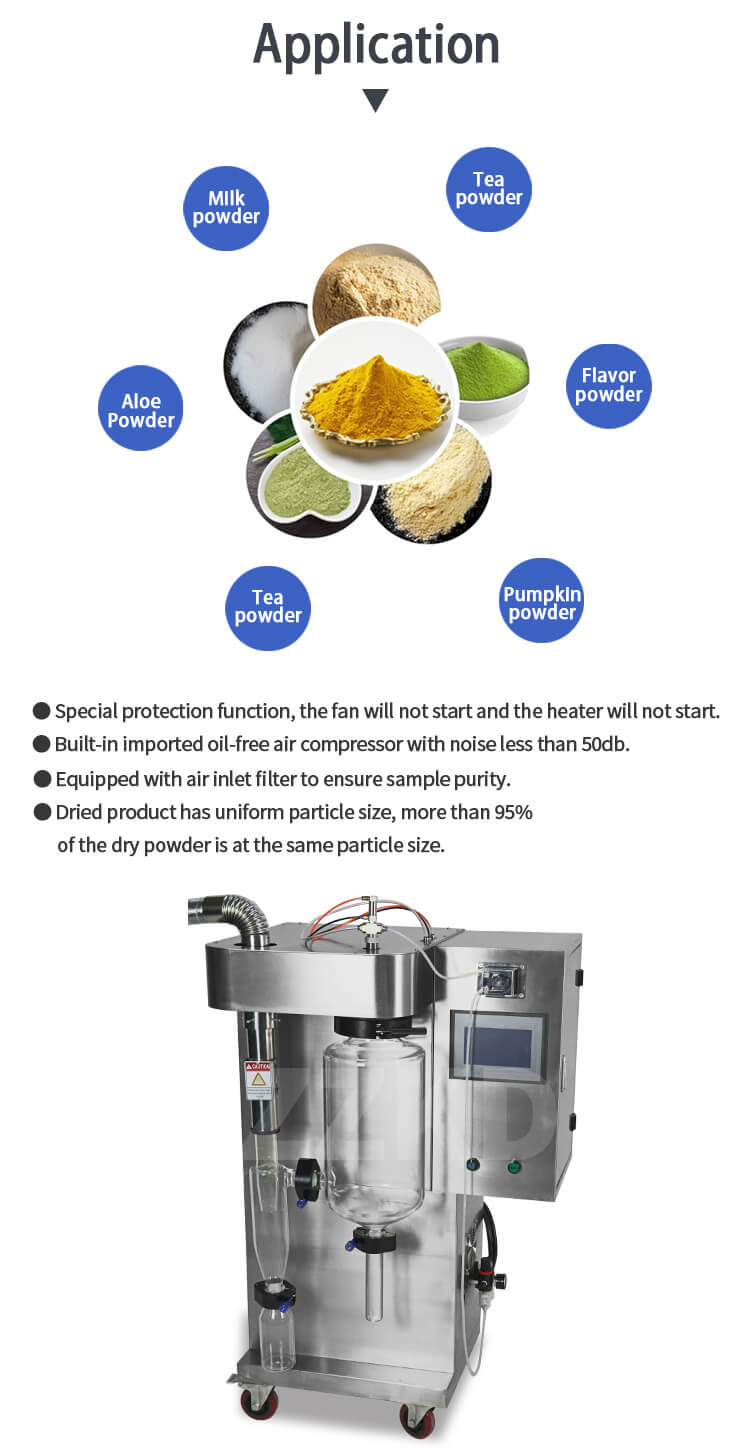

The process is carried out under the high pressure of hot air, the water does not evaporate directly through the liquid state, and the time is very short. The spray-dried products can maintain their natural luster and breath, their appearance and shape, and various nutrients such as protein and vitamins. There is basically no loss of inherent substances. It is used for drying some heat-sensitive liquids, suspensions and viscous liquids, such as milk, eggs, tannins and medicines, etc. It is also used for drying fuels, intermediates, soap powder and inorganic salts, etc.

The Principle of Spray Dryer Machine:

The air is heated by the heater and enters the drying chamber. At the same time, the material liquid is atomized by the atomizer into micron/nano-scale droplets. When the droplets contact with the hot air, they are quickly gasified and dried into powder or granular products. Dry powder or granules The product flows into the cyclone separator with the air for separation, falls into the recovery bottle, and finally the exhaust gas is discharged.

Model of Spray Dryer Machine:

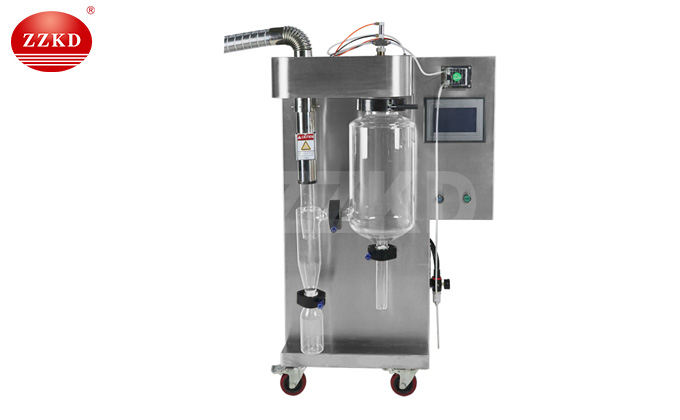

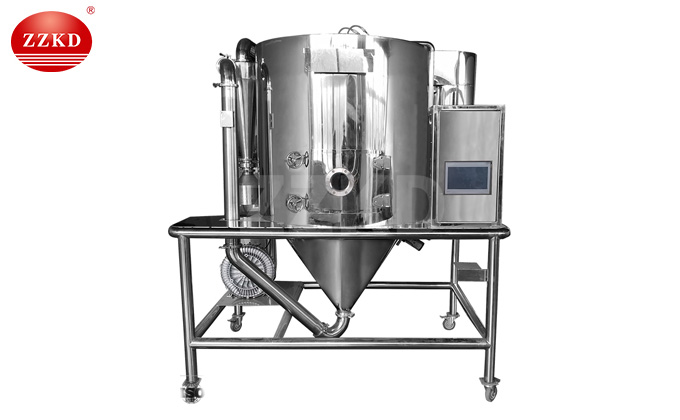

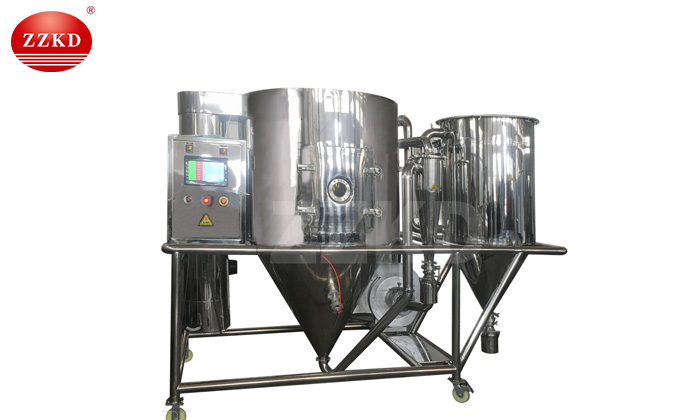

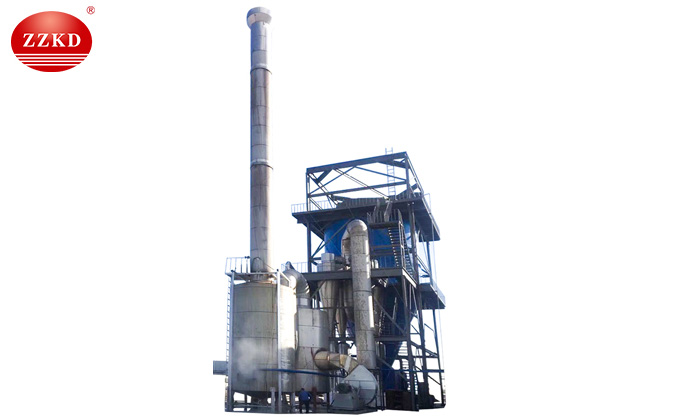

ZZKD Machinery  has been focusing on the research and development and production of laboratory spray dryer for many years. Spray dryer machines are one of our main products. After many upgrades, there are more and more models and types of laboratory spray dryer . There have also been great changes.At present, there are two main types of industrial spray dryerproduced by our company: small industrial spray dryerand centrifugal spray dryer machines.

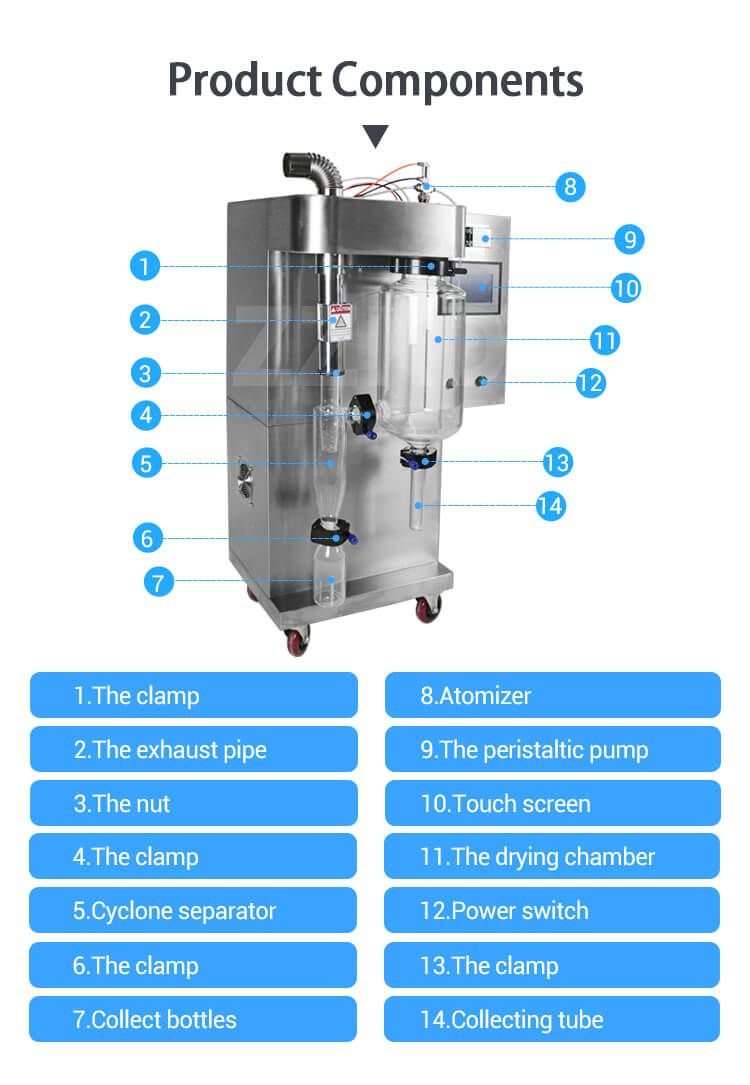

Spray Dryer MachineStructure:

The structure of the industrial spray dryer: heater, fan, atomizer, drying chamber, cyclone separator, material collection bottle, waste collection bottle, etc., followed by the circuit and control system (according to material requirements can be added: dust removal system and other auxiliary systems )

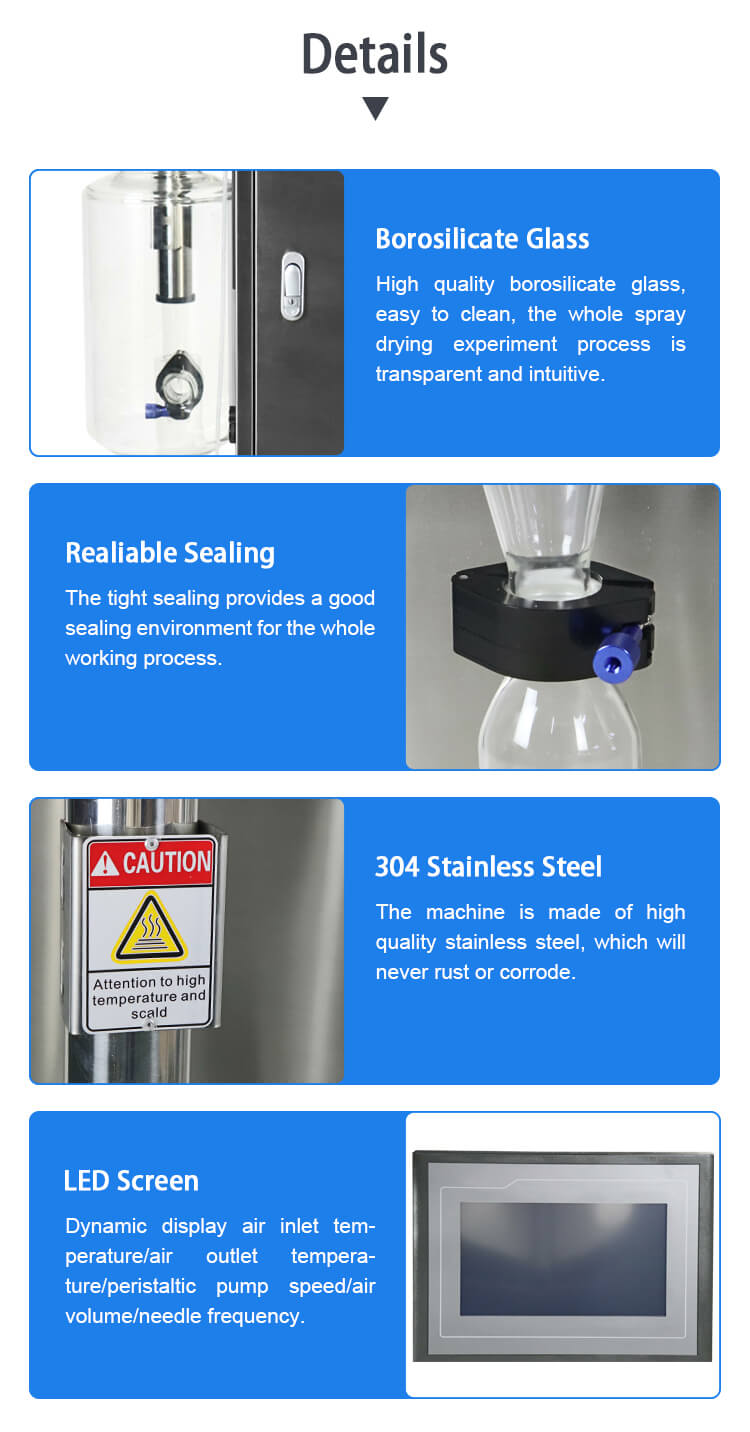

Features of Spray Dryer Machine:

1. The drying speed is fast, the surface area of the material liquid is greatly increased after atomization, and 95%-98% of the water can be evaporated in an instant in the hot air flow, and the drying time is only ten to tens of seconds, especially Suitable for drying heat-sensitive materials.

2. All products are spherical particles with uniform particle size, good fluidity, good solubility, high purity and good quality.

3. It can be used in a wide range. According to the characteristics of the material, it can be dried with hot air or granulated with cold air. It has strong adaptability to materials.

4. The operation is simple and stable, the control is convenient, and it is easy to realize automatic operation.

5. The whole industrial spray dryeris made of stainless steel, with a compact design, no need for auxiliary equipment, and easy to use.

Spray Drying Technology Has Advantages over Other Drying Technologies:

(1) Drying is carried out under high-heat air, with very little oxygen, the easily oxidized substances are protected, and the lack of oxygen can sterilize or inhibit the activity of some bacteria.

(2) Drying is carried out under slightly high pressure, and the spray-dried materials will not be oxidized and deteriorated.

(3) Drying is carried out under hot air, and the heat-sensitive ingredients that are easy to display in the material will not be denatured or lose their vitality, especially the spraying of protein products, which will not change the structure of the protein.

(4) The spray-dried material can form atomized small molecules, which will maintain their original shape after drying, without shrinkage, and have a loose and porous sponge structure inside.

(5) The laboratory industrial spray dryerdehydrates thoroughly, and can remove about 90% to 95% of moisture during drying. After drying, it can be kept at room temperature for a long time, and it is easy to transport because of its light weight.

(6) The mini industrial spray dryerhas good rehydration properties, and the spray-dried products can quickly absorb water and recover, and their luster and quality are basically the same as fresh products.

How to Use the Spray Dryer Machine?

1. The prepared material (solvent) is transported to the atomizer through the peristaltic pump, and the atomizer atomizes the material to the drying chamber;

2. The atomized material is evaporated by hot air in the drying room, and after the water is completely evaporated, the material is introduced into the cyclone separator (induced air system or air supply system) for solid-gas separation;

3. The separated material will enter the material collection bottle, and the separated exhaust gas will be discharged from the air outlet (or after secondary treatment by bag dust removal)

Precautions for Spray Dryer Machine:

1. Be careful not to lose the nozzle when cleaning the spray gun.

2. Handle with care during the experiment to prevent damage to glass accessories.

3. The solid particle size of the feed should not be larger than the diameter of the nozzle, the feed volume should not be less than 50ml, and the solid content should generally not exceed 25%.

4. Wash the equipment in time after the experiment.

5. Viscous materials cannot be used for spray drying.

6. Cannot be used in organic solvents.

How to Maintain the Spray Dryer Machine:

1. Due to the long-term operation or improper operation method of the spray dryer machine, aggregates appear in some laboratory spray dryer and affect the normal operation. At this time, the work should be stopped for cleaning. The cleaning door should be opened to clean the aggregates in the drying tower, and the funnel-shaped spray dryer machineshould be cleaned with a long broom. Collect material at the bottom, open the discharge valve, and when the freezer is turned on, the circulating water should be turned on, and the inside of the dryer tower should be cleaned with tap water.

2. After a period of operation, the spray dryer machineneeds to carry out necessary inspection and maintenance. For the feeding system, check whether the filter, pipe, valve, nozzle, etc. are blocked, clean it regularly, check the wear of the nozzle, and replace it immediately if the wear is serious.

3. After a period of operation, check whether the material pump is leaking oil, whether the pressure gauge and oil level are normal. For the blower of the dryer, check whether the shaft and bearing are short of oil heat, whether there is vibration, noise, etc., and if necessary, clean the three filters of the oil pipe, pump and nozzle.

4. In case of an emergency, the equipment should be shut down immediately, and the blower and material pump should be shut down first. If there is a power failure, the gas engine should be pulled out to let the tower body cool down naturally, then the drain valve should be opened to drain the slurry pipeline and clean the equipment.

Why Choose Us

Professional drying equipment manufacturer

ZZKD Mechanical Instrument Equipment Co., Ltd. is a company integrating production and trade. Our main product is drying equipment. Spray dryer machineis one of our main products for sale. There are two main types of laboratory spray dryer produced by our company: small spray dryer machinemachine and centrifugal spray dryer machine. At the same time, we can also customize according to your needs. The company has been established for more than ten years, providing equipment solutions for tens of thousands of enterprises and individuals at home and abroad, and has won unanimous praise from domestic and foreign customers.

Fast delivery

We have warehouses in Los Angeles in the United States, Valencia in Spain, and Thailand. We can choose the nearest warehouse for delivery according to the customer's geographical location, ensuring that the customer receives the goods quickly.

Perfect after-sales team

We provide a one-year warranty service for the products we sell. We have a professional after-sales team to deal with customers' after-sales problems, and can provide corresponding technical guidance through videos and other methods.
