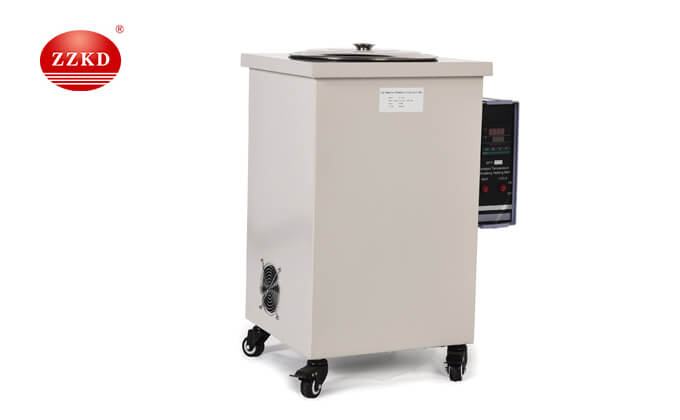

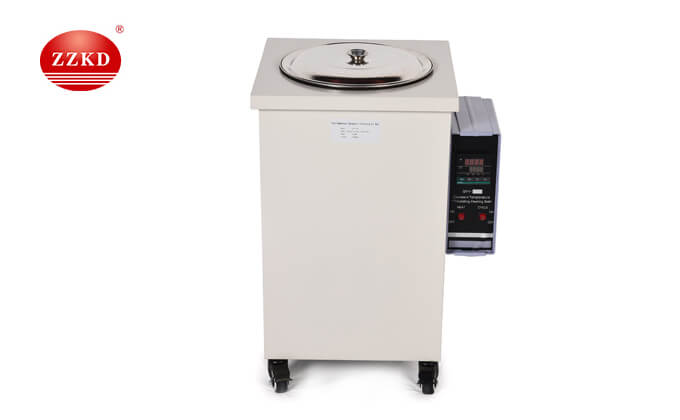

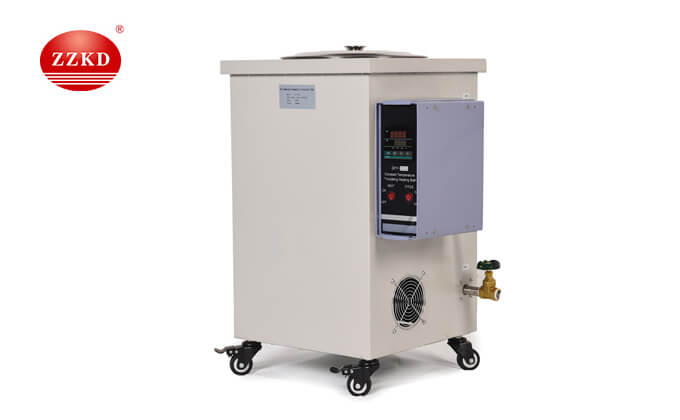

Water/Oil Bath

The water oil bath adopts imported stainless steel plate material as the inner tank, and the outer shell is made of high-quality cardboard with electrostatic spraying. The electric heating tube will be in the middle of the water, with fast heating, high thermal efficiency, low power consumption, and electronic constant temperature. We have also improved the temperature control system of the water oil bath. Whether it is digital display or intelligent, a time-delay temperature control device has been added to make the temperature control of the product more accurate. The water oil bath shell and the liner are protected by thermal insulation cotton, which has excellent thermal insulation effect.

The Working Principle of Water Oil Bath:

The water oil bath heats the oil in the pot through the heating tube, and converts the temperature of the oil into a variable power parameter through the temperature sensor. The size of the power parameter reflects the oil temperature, and then the temperature value is Compared with the set value, the pressure difference between the two is amplified by the operational amplifier to drive the actuator (relay or thyristor connected to the heating tube) to work or not, thus stabilizing the temperature at the set temperature.

Model of Water Oil Bath:

ZZKD Machineryhas been focusing on the research and development and production of water oil bath for many years. Water oil bath is one of our main products. After many upgrades and transformations, there are more and more models and types of water oil bath, and the functions are more and more perfect. At present, our water oil bath models are: GYY-5L, GYY-10L, GYY-20L, GYY-30L, GYY-50L, GYY-80L, GYY-100L, and we can also customize according to your needs.

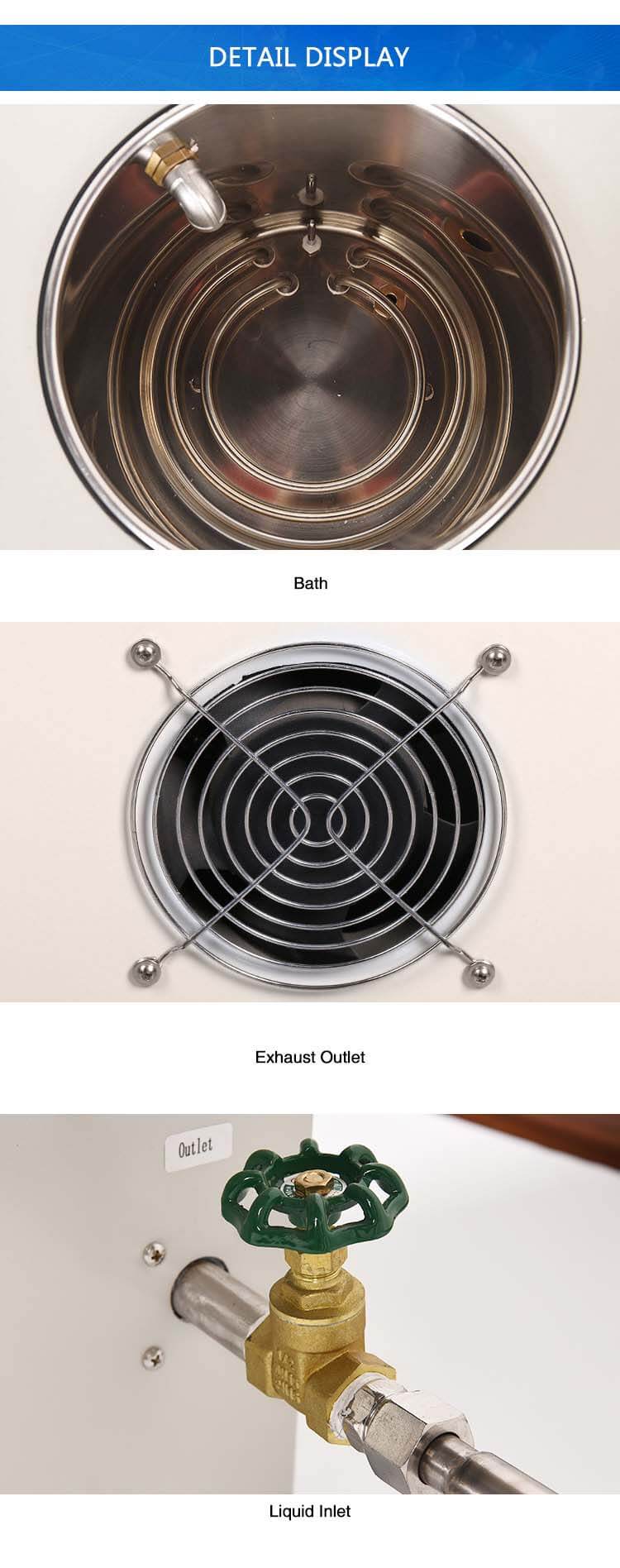

The Structure of Water Oil Bath:

The water oil bath system is made of stainless steel copper for rust and corrosion protection. The circulating pump is made of all stainless steel high temperature magnetic pump, with stable performance, reliable quality and no leakage.

Stainless steel liner

The water oil bath is made of imported stainless steel liner, and the outer shell is made of high-quality plate with electrostatic spraying

Outer loop interface

High-quality copper material, anti-corrosion and corrosion resistance

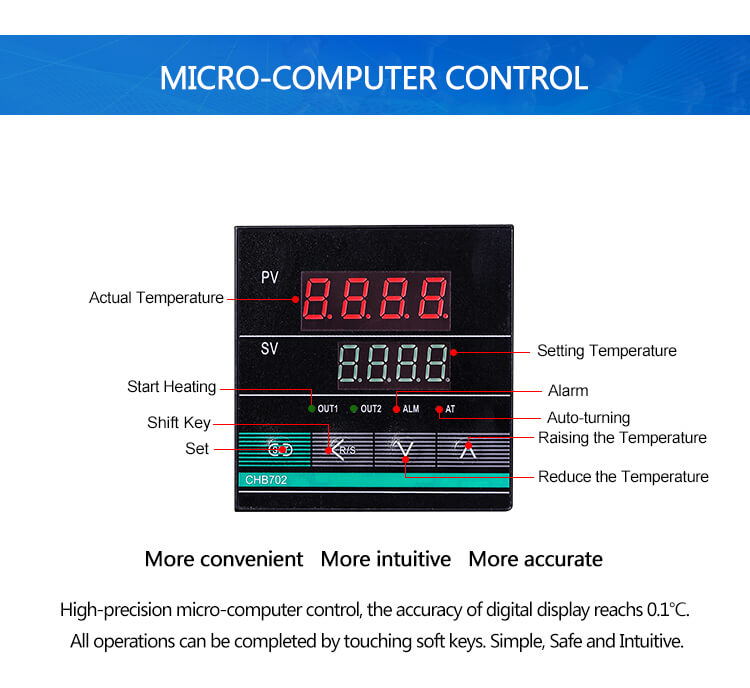

Digital instrument

The digital display instrument has accurate temperature control, intuitive reading, long instrument life and convenient operation.

Water Oil Bath Features:

1. The circulating pump is used in all stainless steel high temperature shielded pumps, with stable performance and reliable quality.

2. Digital display temperature control, easy to operate and eye-catching.

3. The digital display adopts P.I.D control, which has the advantages of precise temperature control and small temperature shock.

4. The circulation system is made of stainless steel and copper, which has the characteristics of anti-rust and anti-corrosion.

5. Adopt solid state relay control circuit, no contact, no open flame, increase life.

Notes for Water Oil Bath:

1. Before using the instrument, please read the instruction manual carefully

2. In order to ensure safety, please connect the ground wire when using.

3. The oil level should not be too high to prevent experimental errors caused by overflow

4. In order to prolong the service life of the instrument, please be careful not to dampen the control box to prevent leakage.

5. The instrument has been guaranteed for one and a half years since the day it leaves the factory (man-made or improper use will charge the cost of the work)

6. After use, please pour out the oil, wipe it clean with a dry cloth, and place it in a ventilated and dry place.

Why Choose Us

Professional reactor equipment manufacturer

Zhengzhou Keda Machinery Equipment Co., Ltd. is a collection of production and trade. Our main product is temperature control equipment. Water oil bath is one of our main products. Our water oil bath models are: GYY-5L , GYY-10L, GYY-20L, GYY-30L, GYY-50L, GYY-80L, GYY-100L. At the same time, we can also customize according to your needs. The company has been established for more than ten years, providing equipment solutions for tens of thousands of enterprises and individuals at home and abroad, and has won unanimous praise from domestic and foreign customers.

Fast delivery

We have warehouses in Los Angeles in the United States, Valencia in Spain, and Thailand. We can choose the nearest warehouse for delivery according to the customer's geographical location, ensuring that the customer receives the goods quickly.

Perfect after-sales team

We provide a one-year warranty service for the products we sell. We have a professional after-sales team to deal with customers' after-sales problems, and can provide corresponding technical guidance through videos and other methods.

Parameter
